DOCK TUNNEL
Special solutions to “special” needs…

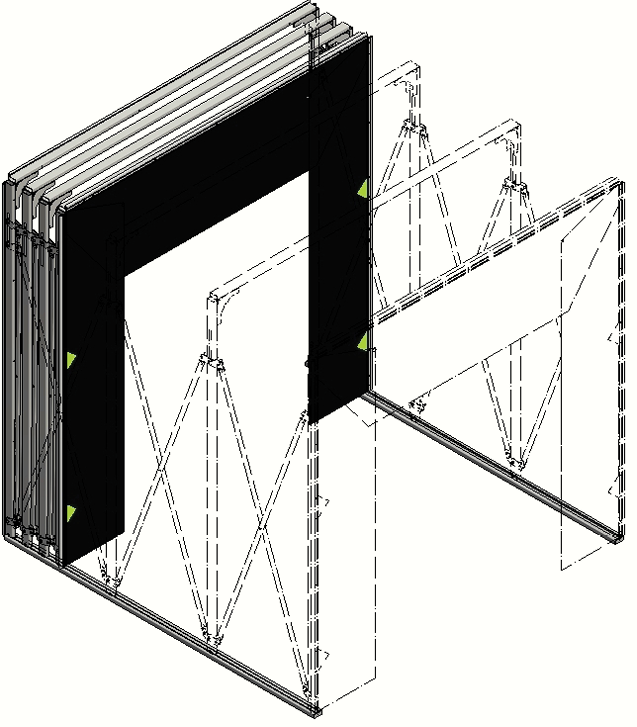

Tunnel Opening-Closing Motion
Tarpaulin and PVC Curtain Colours
STANDARD- Black
* Please refer to sales team for other colors
Dock Tunnel Dimensions
Production at required sizes
FRONT PVC CURTAINS (Optional)
- Braided PVC curtains with 3 mm thickness
FRONT PVC FIXATION LATHS
- Made of anodized extruded aluminum
SIDE CURTAIN
- European sourced PVC tarpaulin, 680 gr/m²
Bottom Junctions
Top Junctions
TOP AND BOTTOM JUNCTIONS
- Ensures strong fixation against wind load
RAIN/WATER DRAINING SLOT (Optional)
REFLECTOR (Optional)
- Reflector support to ease vehicle approaching
CROSSED ARM SYSTEM
- Movable, crossed shock absorber arms that also ensures parallel movements of both sides
MOVING SYSTEM
- Steel wheel mechanism that slides on a track (with a wind hook)
- Prevents friction, helps to easy opening-closing
Moving System
