Loss of energy costs you!

Properly configured “Dock Shelter Systems” prevent energy loss in your factory…

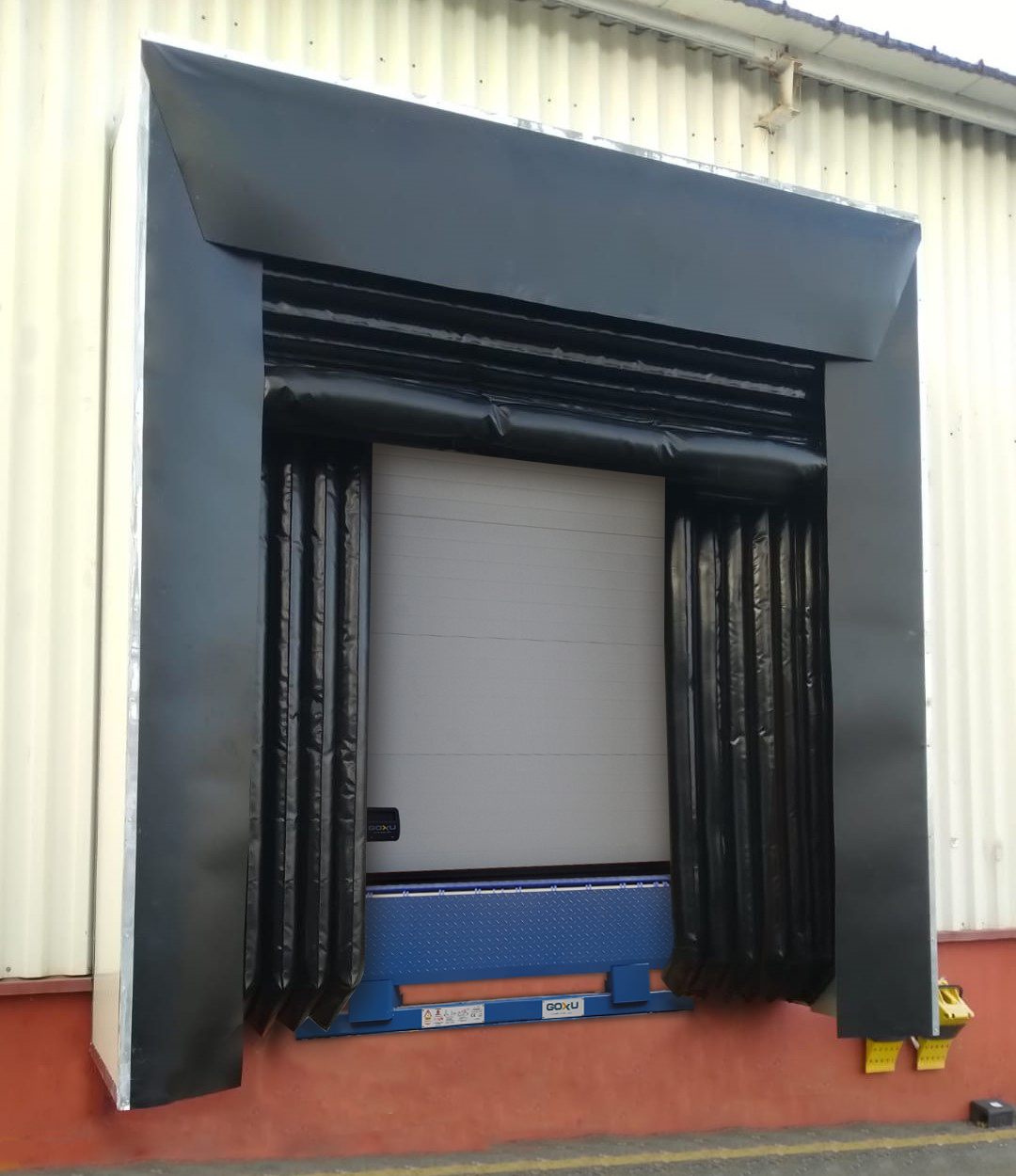

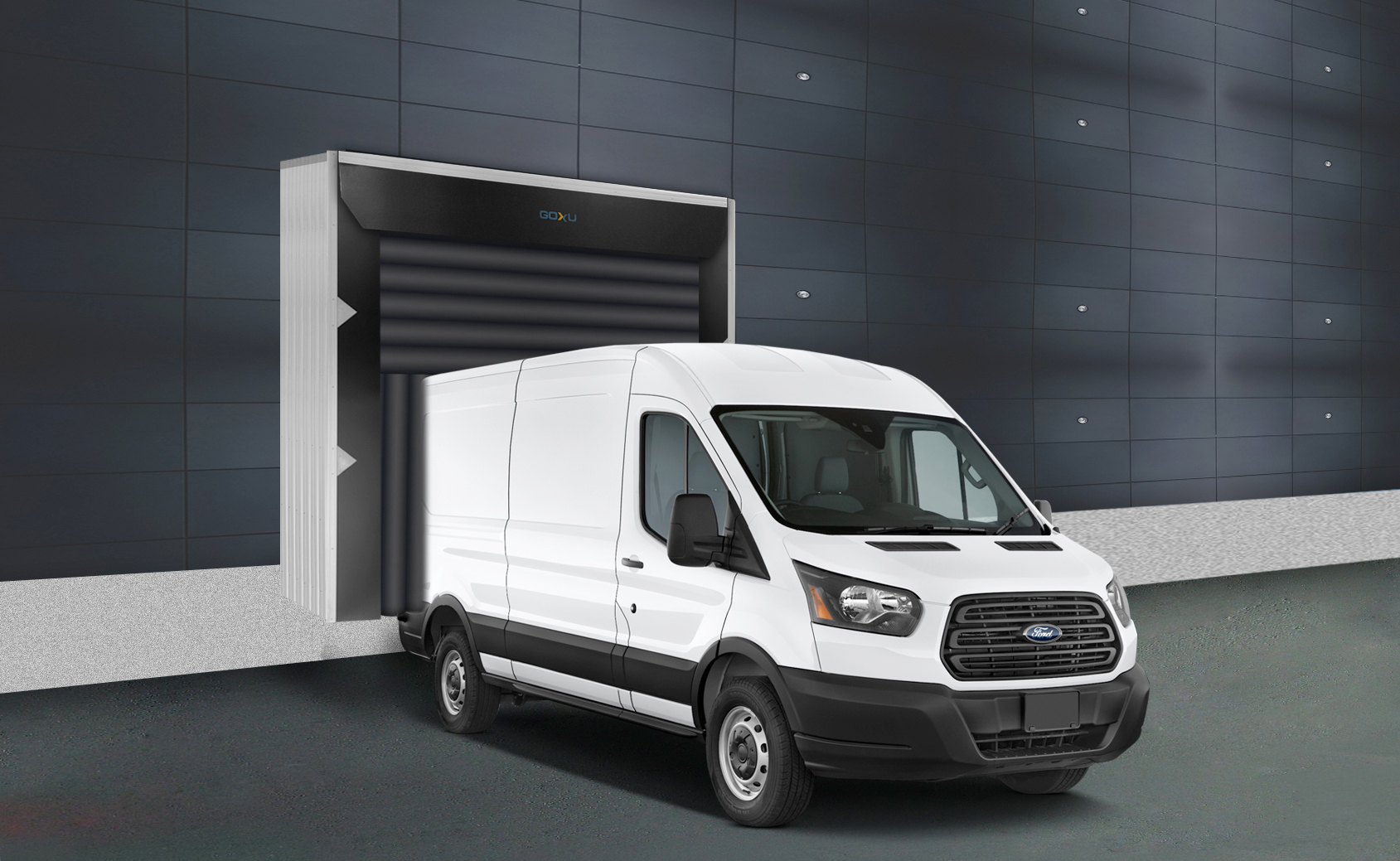

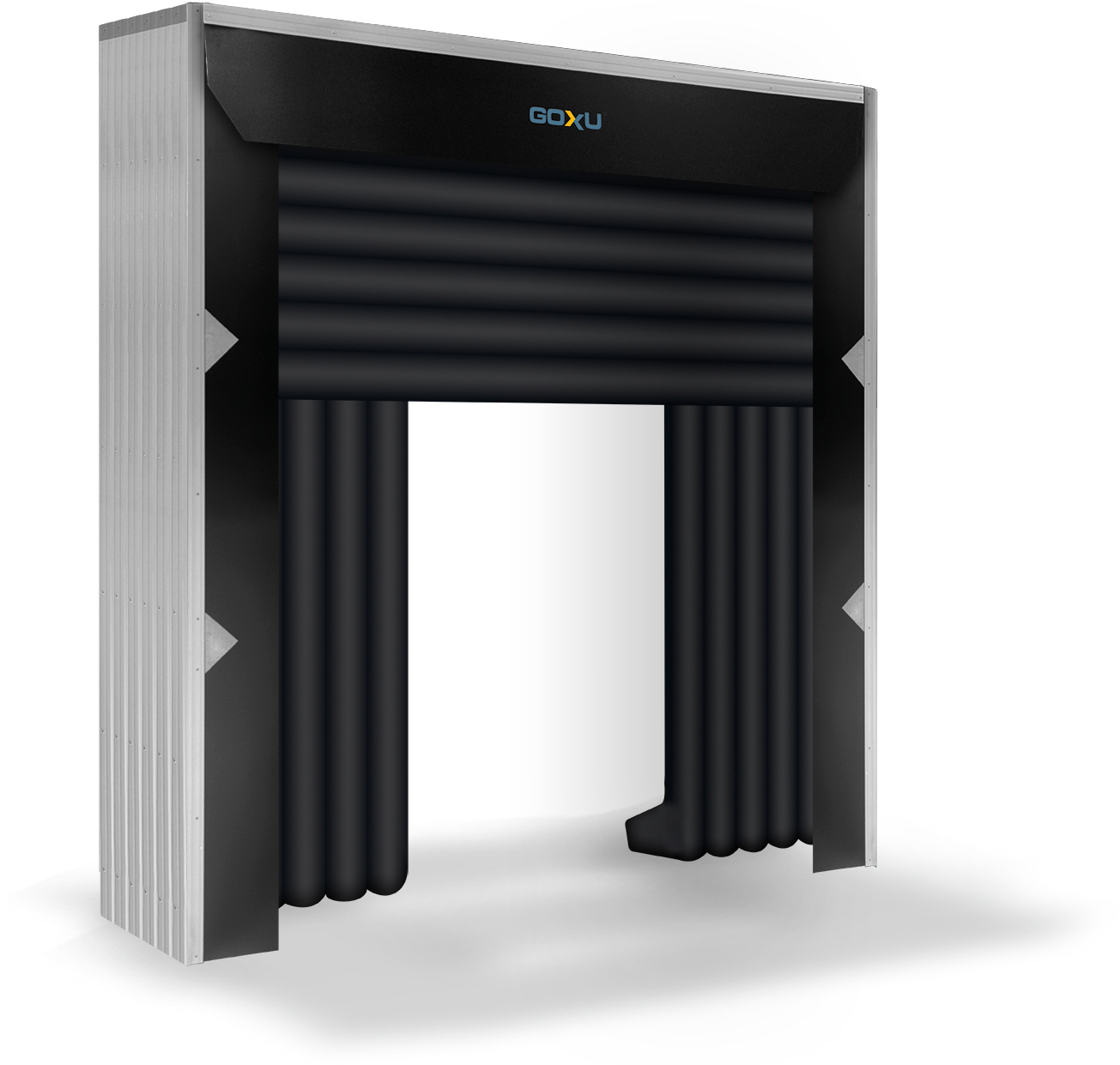

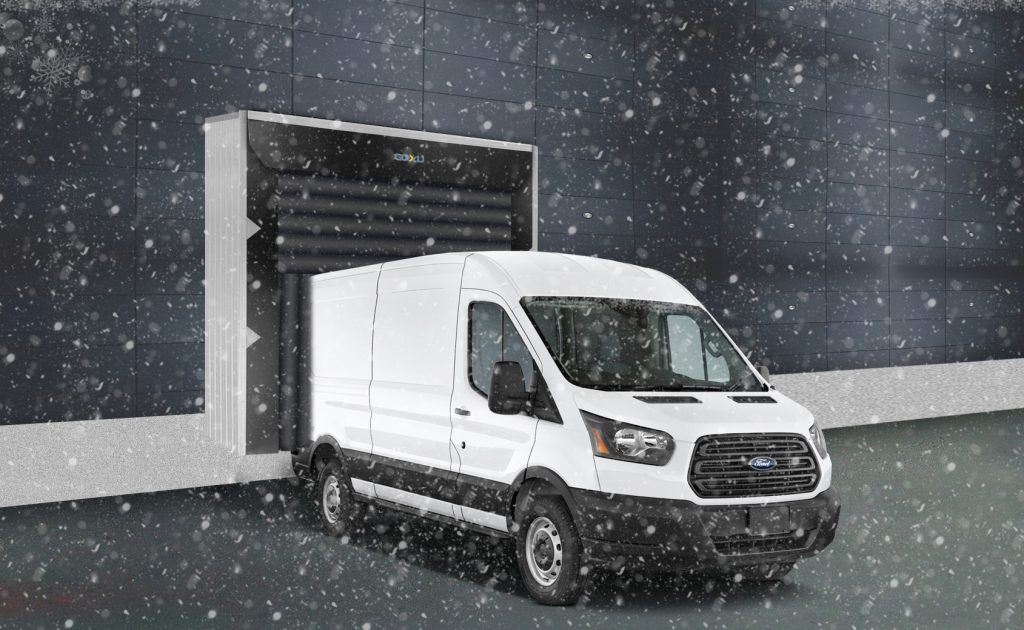

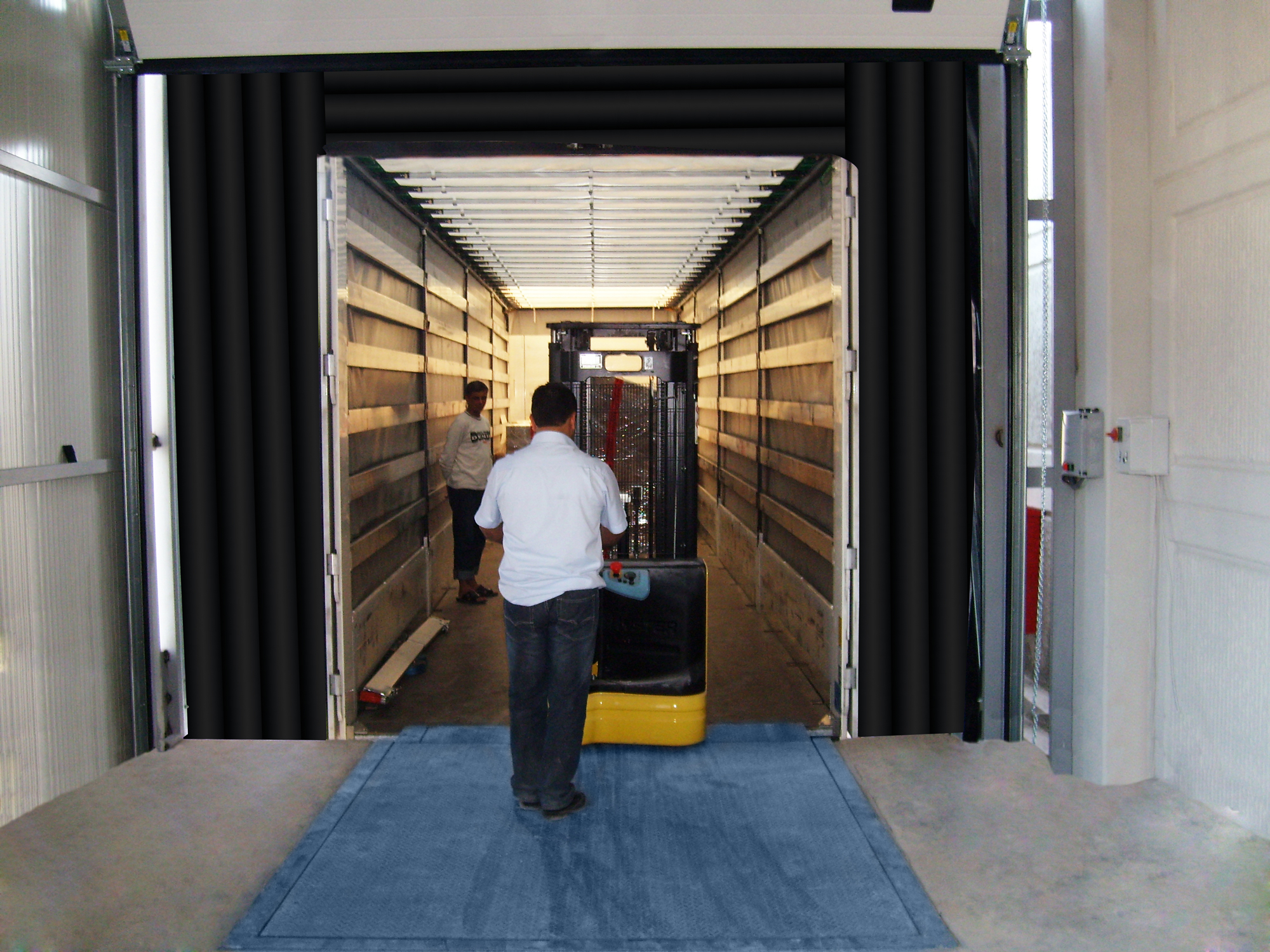

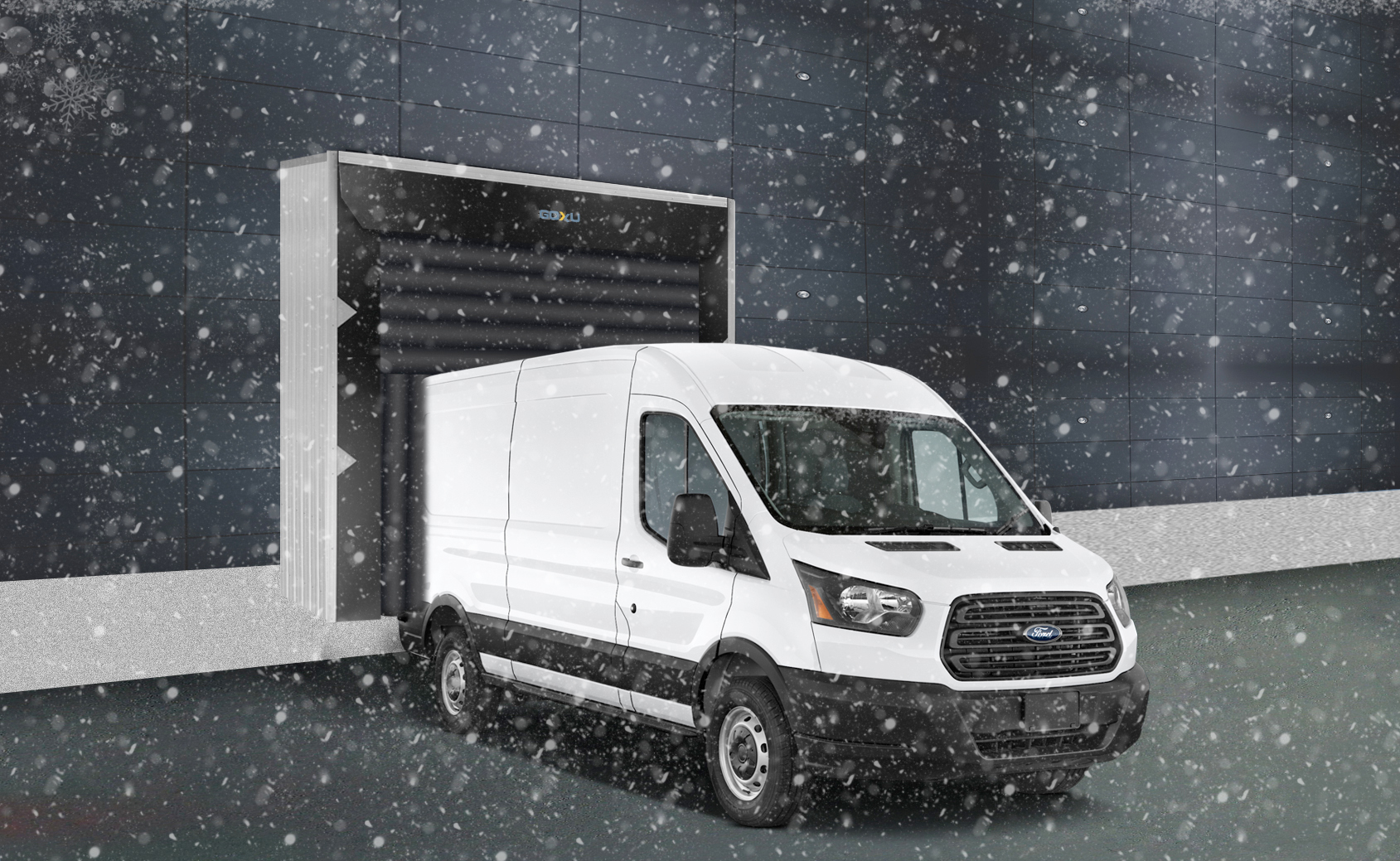

Inflatable Dock Shelter

Maximum “energy” saving

Inflatable Dock Shelter Sizes

Tarpaulin and PVC Curtain Colours

STANDARD- Black

* Please refer to sales team for other colors

FRONT AND SIDE CURTAINS

  • Braided PVC curtains with 3 mm thickness

SIDE FACADE

  • PU filled facade panel with 40 mm thickness

INFLATING TYPE

  • With air pump

DEFLATION TYPE

  • With counter-weight system

INFLATION/DEFLATION SPEED

  • 8 sec./ 8 sec.

REFLECTOR

  • Reflector support to ease vehicle approaching

FRONT PVC FIXATION LATHS

  • Made of anodized extruded aluminum

OTHER SPECIFICATIONS

  • Coating: DIN 5334 N/5cm 6000/5000
  • Resistance to elongation: 1000/900 DIN 53363
  • Burning Class: M2-B1 (DIN 75200, ISO 3795>100 mm/min.)
  • Aero-elastic scale: -40°C – +80°C
  • Hygene: Anti-fugal and anti-bacterial
  • Cleaning: Dirt-proof and easy cleanup due to its LAK characteristics

Inflatable Dock Shelter Dimension Chart

MODELS UPPER BLOKAGE SIDE BLOCKAGE TUNNEL DIMENSIONS
Width Height Depth
TD 101 1350 650 3500 3500 1000
TD 202 1350 650 3500 4000 1000
TD 303 1350 650 3500 4500 1000
TD 404 1750 650 3500 3500 1000
TD 505 1750 650 3500 4000 1000
TD 606 1750 650 3500 4500 1000
