Ninz Fire Doors Catalog 2011

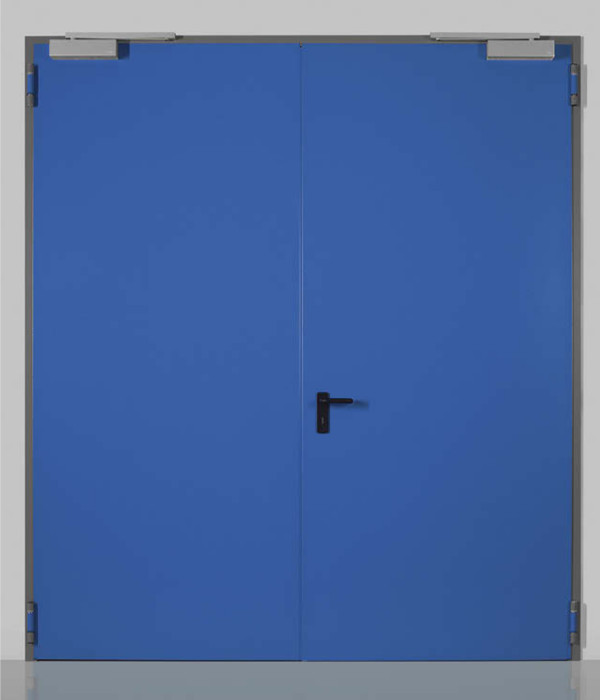

NINZ Fire Doors

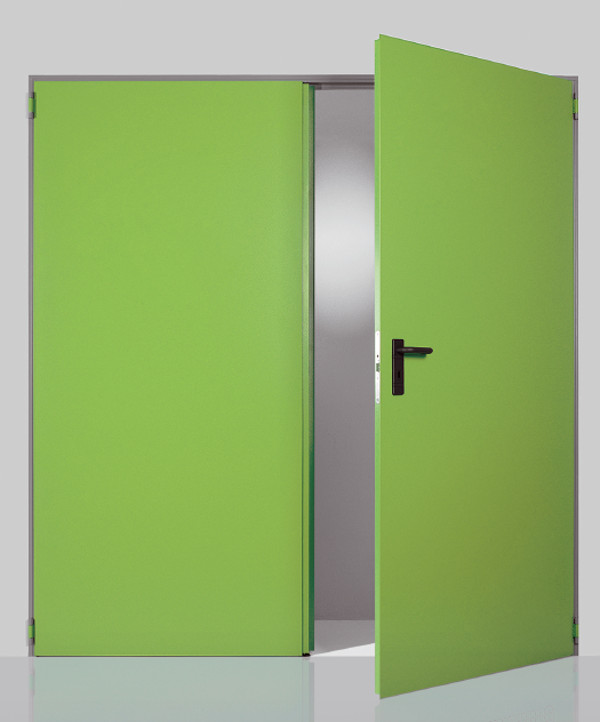

UNIVER Fire doors

WHAT MAKES THEM SPECIAL?

“Quality first”

  • –Fully galvanized door, including the “hidden” parts
  • — Made of “Sendzimir” processed hot-galvanized sheet metal
  • –Corrosion protection also provided along cut edges of the metal sheets
  • –Painted with epoxy-polyester thermoset powders in a 180 degrees (Celsius) oven
  • –Substantial paint layer (70 microns plus)
  • –Optimal corrosion resistance demonstrated by 500 hour salt-fog test
  • –Unaffected by severe climate changes, demonstrated by 2000 hours with +60° to -10° cycles at 75% humidity
  • –Finishing with high-quality aesthetics
  • –Orange skin anti-scratch structured paint
  • –Customizable with wide selection of RAL colors

“Practicality of use”

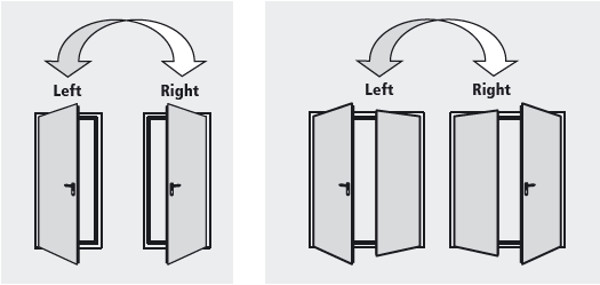

  • –Door reversibility*
  • –Indication of door opening direction not necessary
  • –Reduction of stock for retailers
  • –Simplifies choices for end customers
  • –Multiple installation methods for each door
  • –Type approvals for anchors for mortar fixing or expansion screws

“Conformity to standards” for NINZ Fire Doors

  • –In-house Ninz R&D with specialized testing equipment
  • –Fire testing in accordance with UNI 9723 and EN 1634-1
  • –Mechanical testing for the marking of accessories
  • — -marked door accessories studied and sized to meet standard European requirements
  • — Careful selection of materials and manufacturing methods
  • — Strict product testing for conformity to declared technical standards
  • –Absolute functional certainty over time
  • –Doors “type approved” in compliance with M.D. 21 June 2004
  • –Products delivered with the documentation required by current regulations

“Manufacturing technology”

  • –Manufacturing in modern and functional facilities which employ the latest technologies to maintain high quality levels and product uniformity
  • –The entire production process – from raw materials to painted and packaged products – takes place inside Ninz’s own facilities, ensuring a 360 degree door control

STANDARD ELEMENTS FOR VERSIONS EI230 – EI260, EI290 – REI 60 – REI 120

which comprise comprise Univer fire doors:

Doorframe for NINZ Fire Doors

  • -Made of “Sendzimir” processed hot-galvanized sheetmetal, press folded and electro welded
  • –Perimetral rebate on 4 sides
  • –Internally reinforced with hot-galvanized steel profiles
  • –Heat-insulated with treated mineral wool
  • –Internal stiffeners for overhead door closer and panic bar
  • –50 or 60 mm thickness, depending on fire ratingDoorframe
  • — Made of “Sendzimir” processed hot-galvanized sheet metal
  • –Grooves for thermo expansive sealing and rebate sealing
  • –Suitable for anchors for mortar fixing or expansion screws
  • –Detachable rebate for application on finished flooring
  • –Removable threshold for thresholdless installation
  • — Strike plates in PA6 black nylon for lock bolt and safety bolts
  • –Assembled doorframes for one-leaved doors
  • –Assembly required for two-leaved doorframes Thermo expansive sealing
  • –Mounted on vertical doorframe profiles and central vertical profiles on two-leaved doors
  • — For on-site mounting on the doorframe’s upper cross-beam
  • –Mounted above and below the EI290 and REI 120 leaves Hinges
  • –Nr. 2 three-wing hinges for each leaf
  • –of which one ball-bearing hinge with screws for vertical adjustment of the leaf, marked as per EN 1935, classified for up to 160 kg load, 200.000 cycles durability, suitable for fire door use –and one hinge with self-closing spring Safety bolts
  • –Nr. 2 safety bolts on hinge side leaf edge Locking mechanism
  • –Reversible locking mechanism with bolt and central lock
  • — marked in conformity with EN 12209 standard
  • –Insert with patent key, Euro profile cylinder ready Handle
  • –Fire rated handle in black PA6 nylon with steel core
  • –Steel installation plate with cylinder hole
  • –Backplate in black PA6 nylon
  • –Fastener screws and patent key insert

NOTE: Cylinder and rebate sealing provided on request only. The handle requires assembly.

INCLUDED ACCESSORIES

which are part of the Univer fire doors:

-C-lTowsoin-lgea rveegd udloaotros rinclude an RC/STD closing regulator to ensure the correct closing sequence of the leaves

  • — marking in conformity with EN 1158 standard Locking mechanism for secondary leaf
  • –“Flush-bolt” automatic locking of the secondary leaf
  • –Lever control for unlocking Upper coupling system for the secondary leaf
  • –Secondary leaf lock activated device which inserts rod into the upper strike box
  • –Upper strike box in black PA6 nylon with steel roller Lower coupling system for the secondary leaf
  • –Vertical rod with steel point which inserts into lower strike box
  • –Floor catch (floor-mounted floor catch) made of selfextinguishing black nylon, for doors without threshold
  • –Floor catch in self-extinguishing black nylon with a steel roller, for doors with threshold Identification plate
  • –Metal tag with door identification data, in accordance with current regulations

Finishing

  • –Standard painted with epoxy-polyester thermoset powders in a 180 degrees oven, orange skin, anti-scratch finishing
  • — Standard pastel turquoise color, lighter tone for the leaf (NCS4020-B50G), darker tone for the frame (NCS5020-B50G) Standard packaging
  • — Single door wrapped into stretchable polyethylene (PE) film
  • –Assembled doorframes for one-leaved doors
  • –Assembly required for doorframes for two-leaved doors –Palletized on wooden pallets

WINDOW WITH FIRE RATED GLASS FOR NINZ FIRE DOORS

Upon request all one- and two-leaved fire doors, excluding those EI230 rated, may be equipped with round or rectangular windows with fire rated stratified glass and window frames. Windows not possible for one-leaved REI doors with FM L (wall opening) above 1167mm.

Limits prescribed by standard According to standards UNI 9723 and EN 1634-1, windows may be smaller but not larger than the test sample size, and the reverse holds true for the border strip around the
window which may be wider but not thinner. The following limits correspond with these restrictions.

Borders, window position
“Border measurement” refers to the distance from theedge of the window to the wall opening of the door.

FRAME EXTENSIONS FOR UNIVER DOORS

IM 11 – IM 12

Frame extensions to be mounted in addition to the Univer frame acting as a wall cladding. Made of “Sendzimir” processed hot-galvanized sheet metal and Painted the same color as the doorframe with epoxy-polyester powders. Profile on three sides, upper corners with 45 degree joint, fixing with screws and plugs (screws and plugs not included).

IM 11: for 50mm door thickness, for installation on 70mm (min.) wall thickness

IM 12: for 60mm door thickness, for installation on 80mm (min.) wall thickness

IM 13 – IM 14

Telescopic frame extension to be screwed to the Univer doorframe acting as a wall cladding. Consists of two overlapping profiles with a 25mm adjustable range.

Made of “Sendzimir” processed hot-galvanized sheet metal painted the same color as the doorframe with epoxy-polyester powders.

Profile on three sides, upper corners with 90 degree joint.

Complete with fastener screws. To mount the frame extension, fixing holes need to be drilled into doorframe on site.

Combine with sealing to conceal the screw heads.

IM 13: for 50mm door thickness, for installation on 125mm (min.) wall thickness

IM 14: for 60mm door thickness, for installation on 135mm (min.) wall thickness

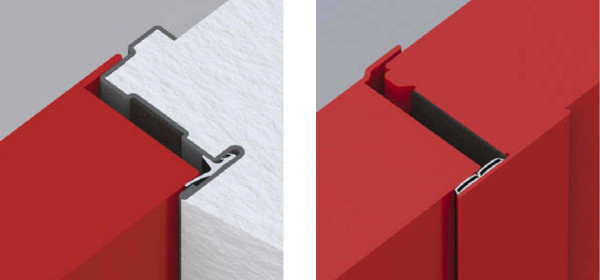

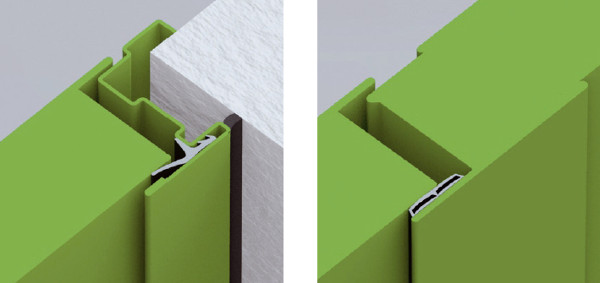

REBATE SEALING

FF/CR sealing (for EI2 doors) and FF sealing (for REI doors) in black extruded profile to be pressed into the dedicated groove in the perimetral frame.

FF sealing in black extruded profile self-adhesive for application to the central joint of two-leaved doors.

NOTE: Upon request sealing supplied for single doors to be cut and mounted on site.
