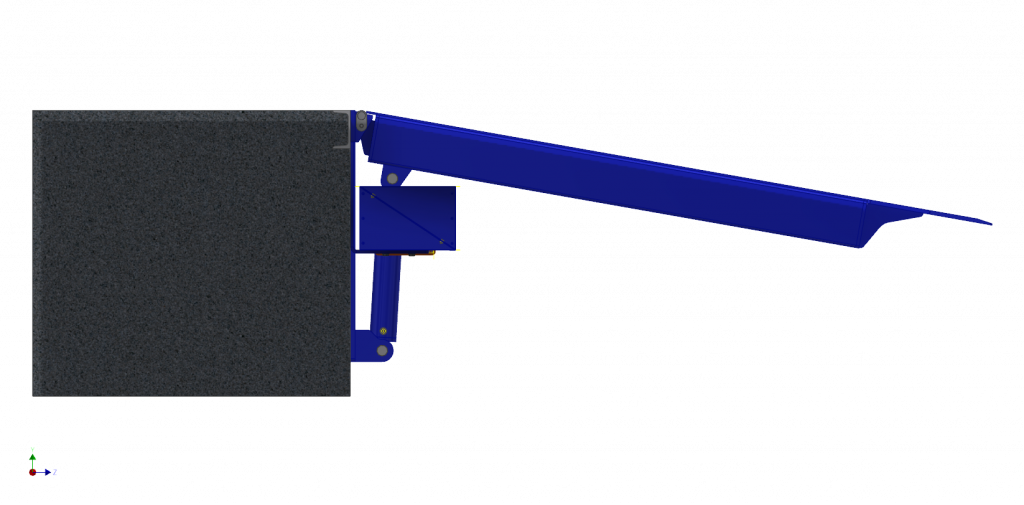

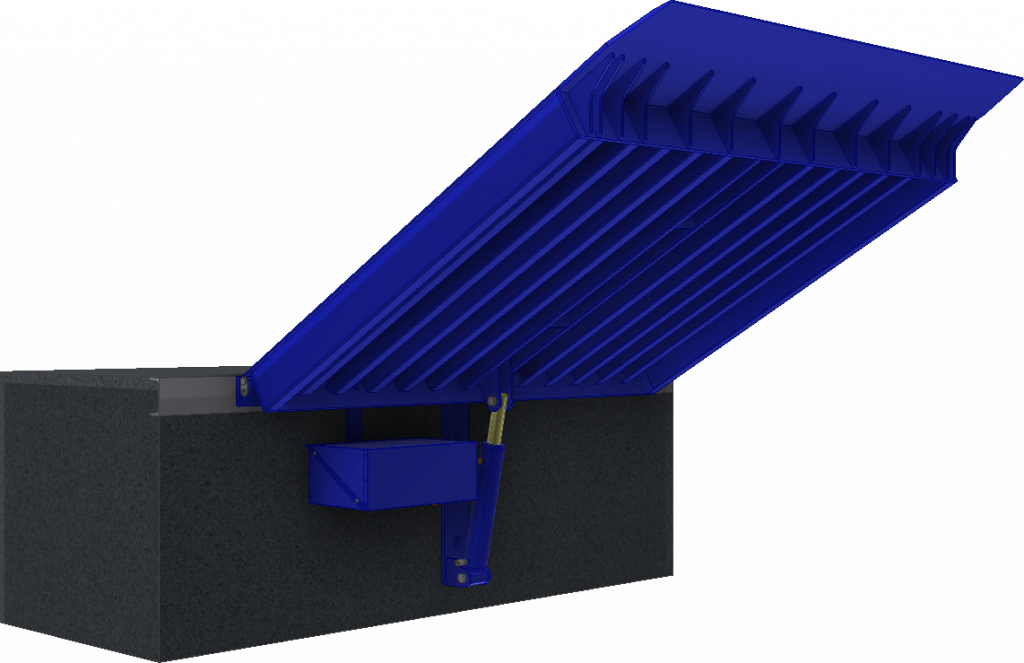

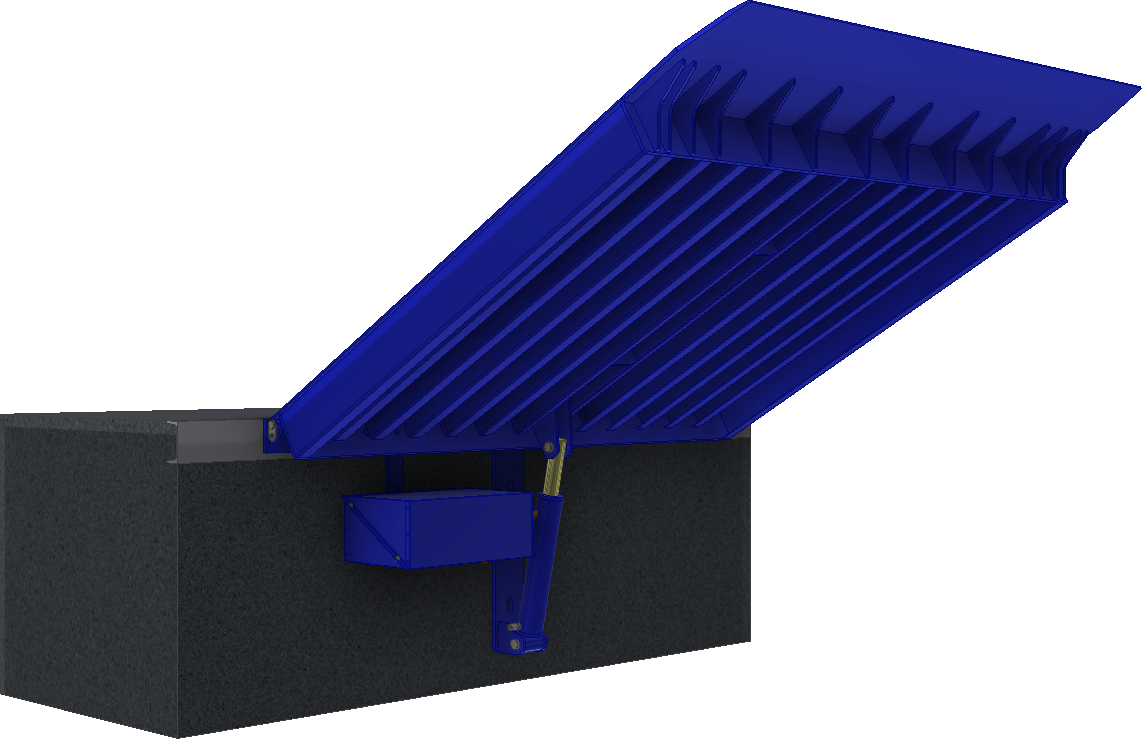

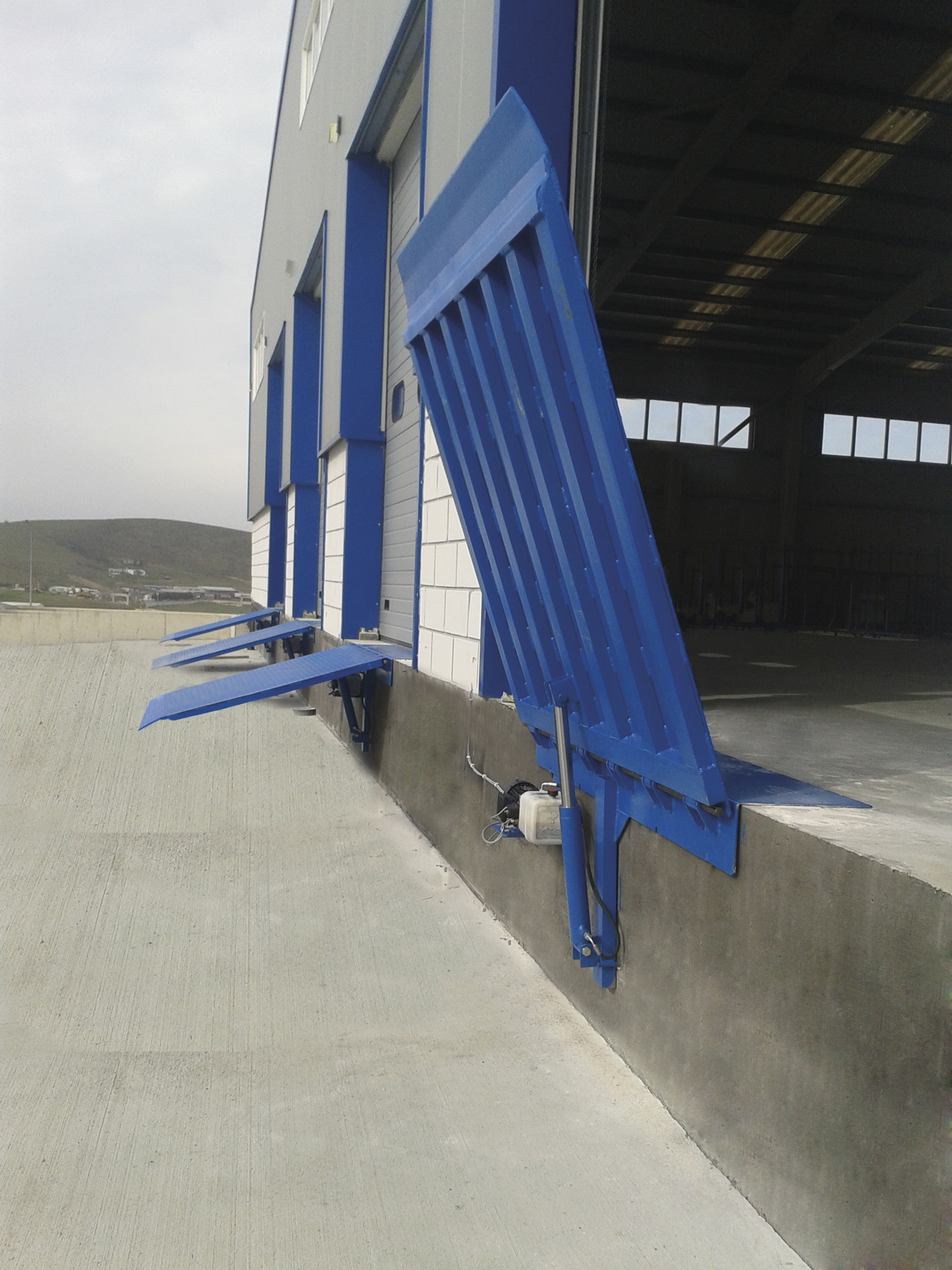

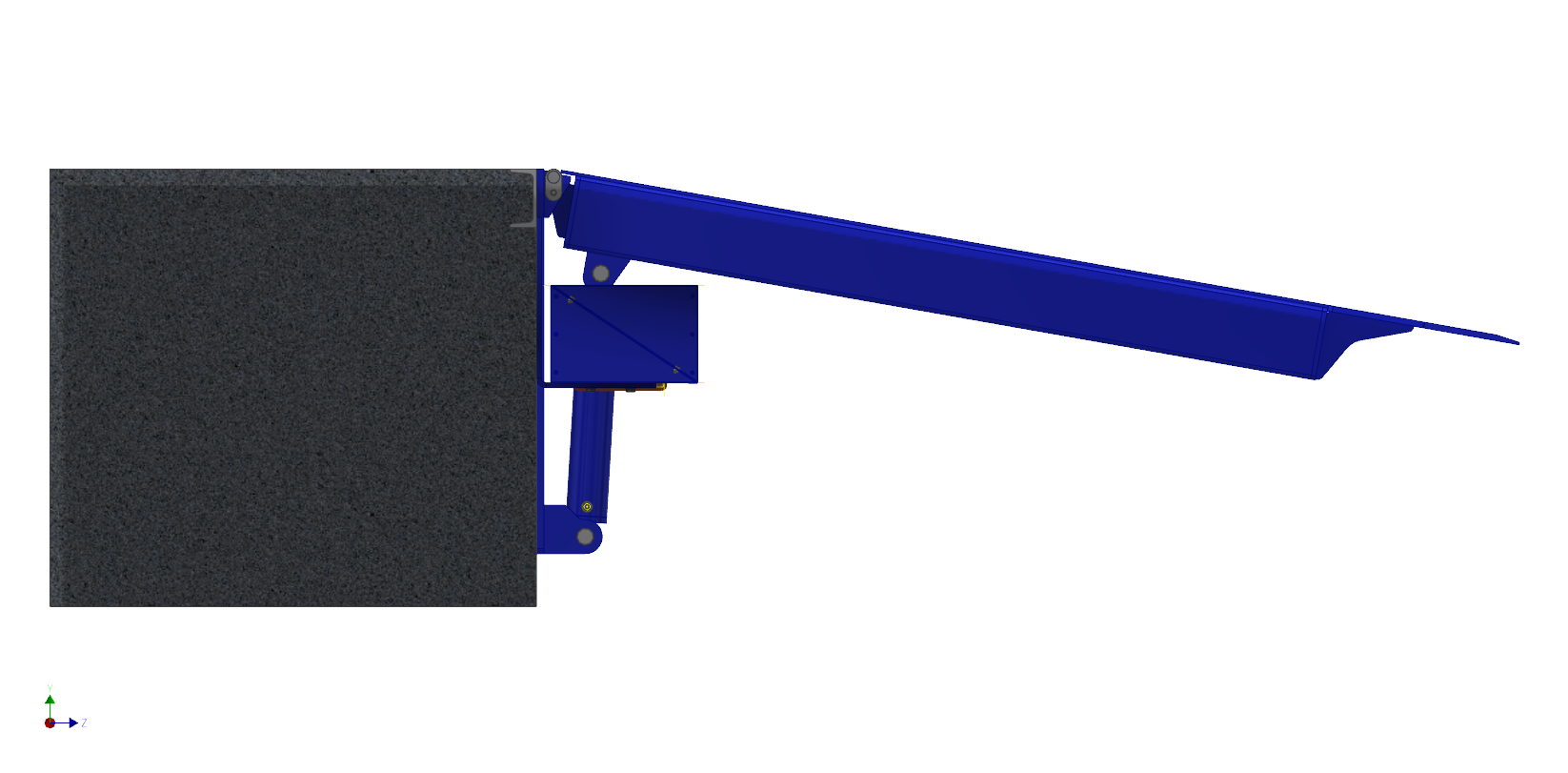

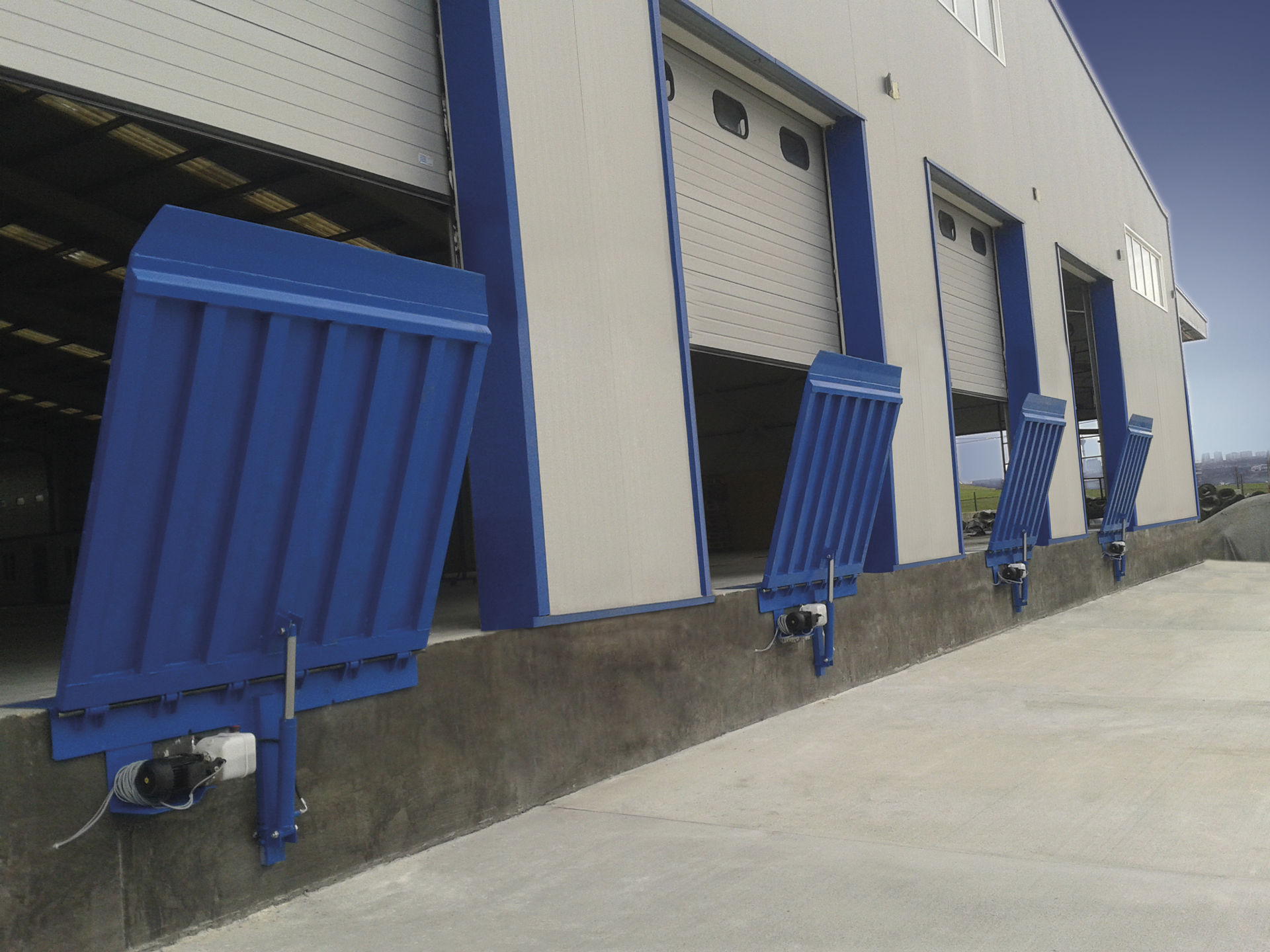

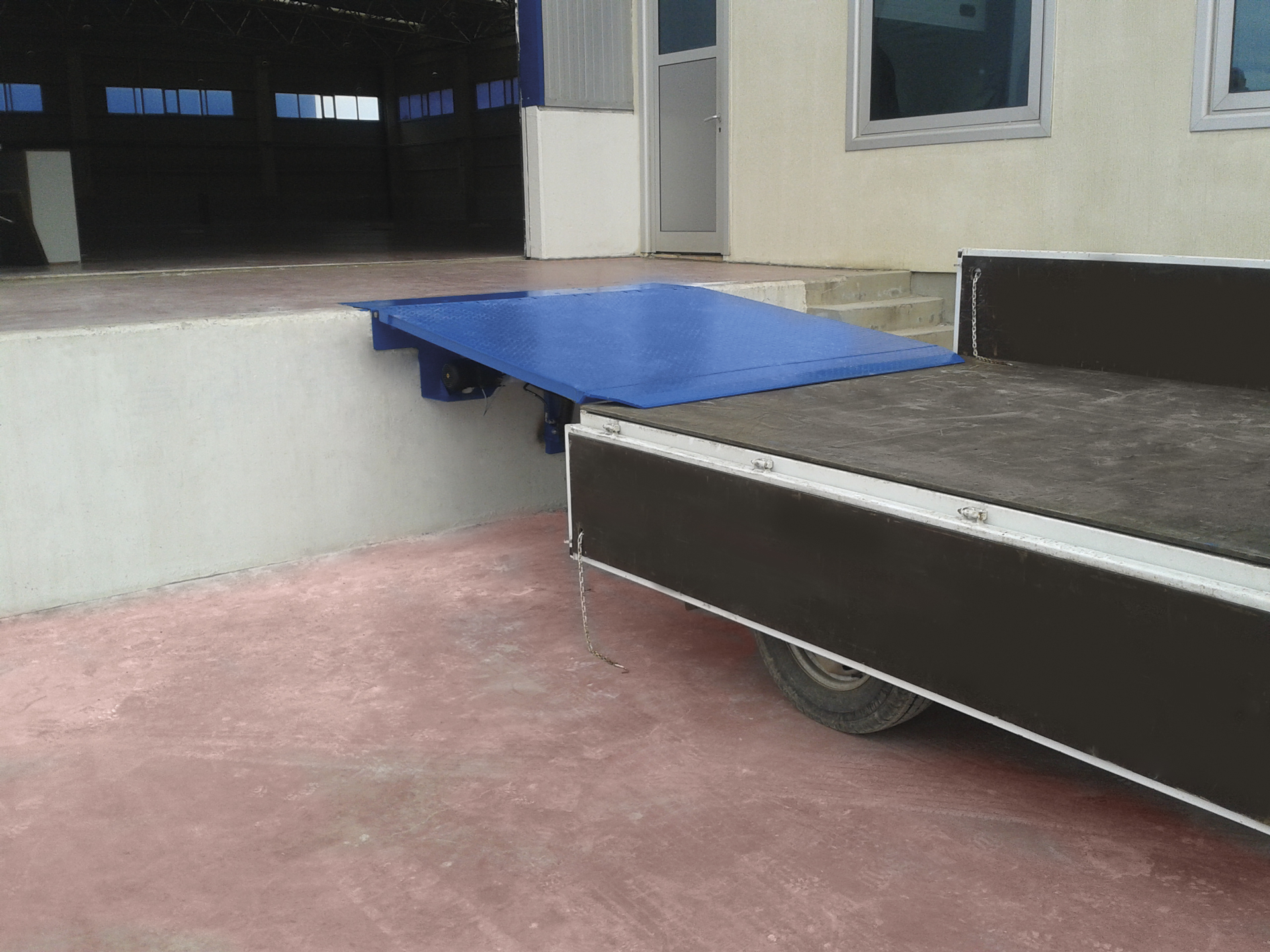

Vertical Type Dock Leveler (TRENCHLESS)

Different “solutions” to different needs

FLOOR ANCHORAGING

  • Strong fixing to the floor thanks to horizontal and vertical plates spread over a large area

HYDRAULIC UNIT

  • Italian hydraulic unit with safety valve against hose fracture
  • Capable to pull the flap back by force

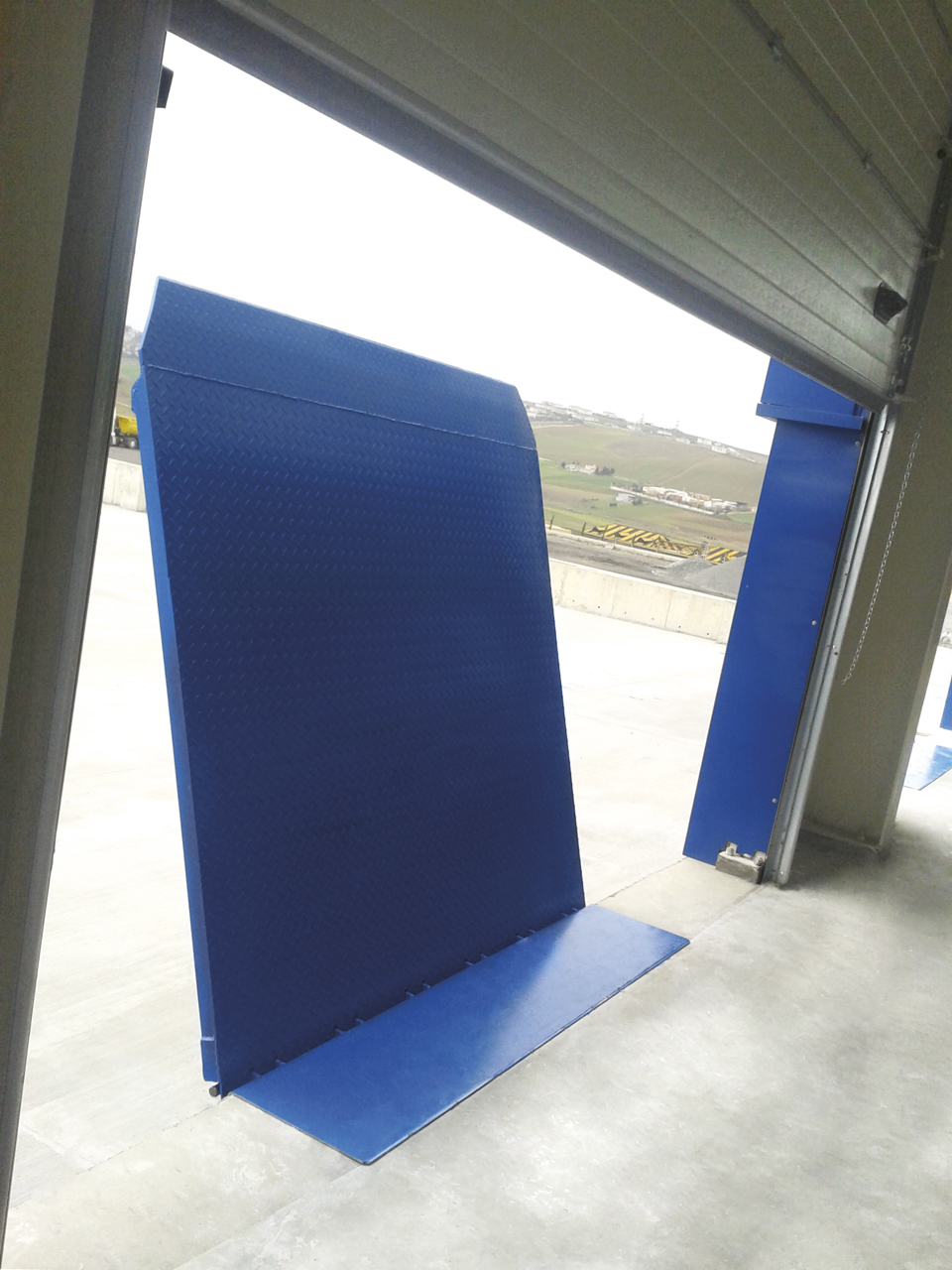

PLATFORM SHEET

  • Tear-drop checkered steel sheet

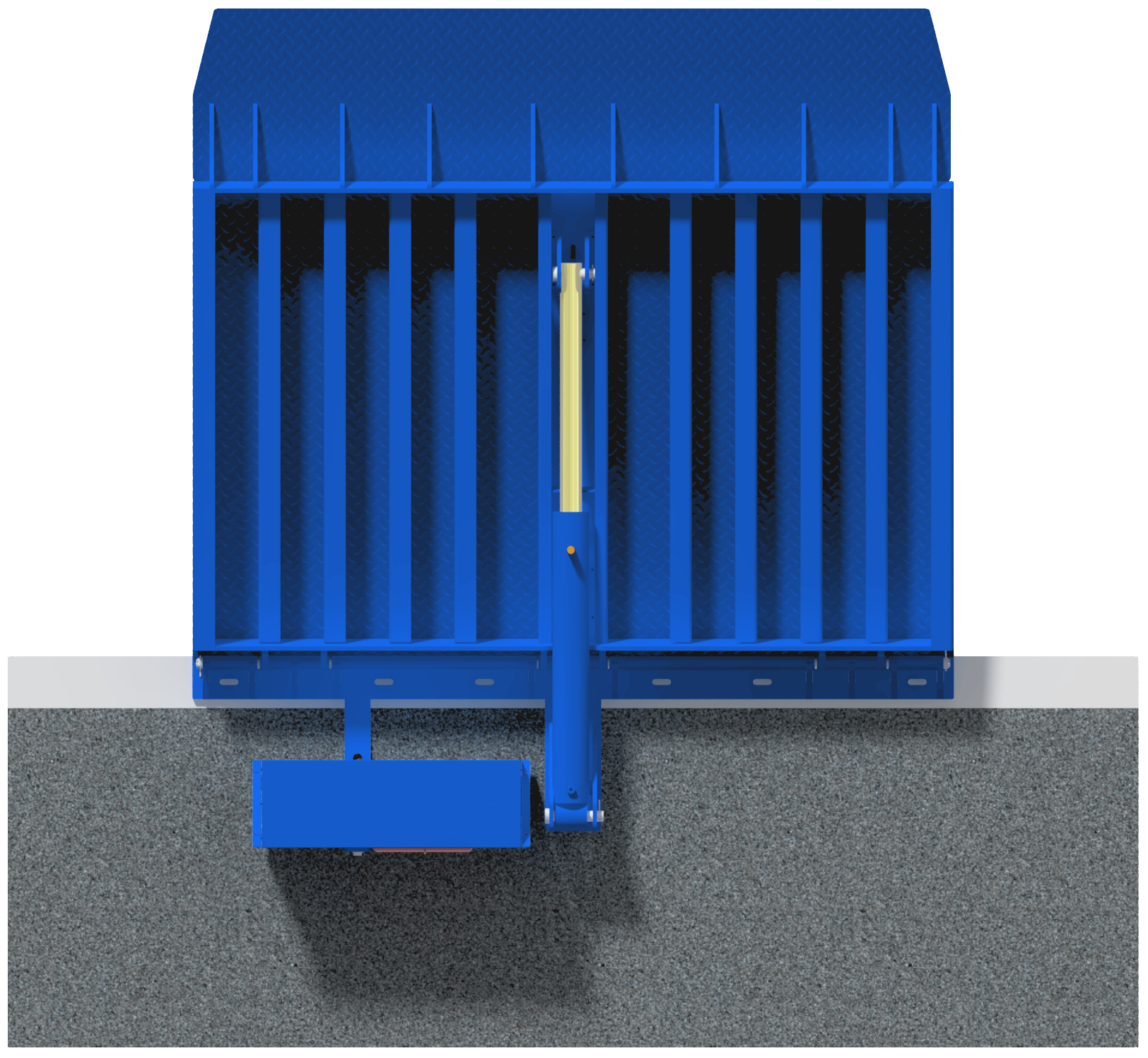

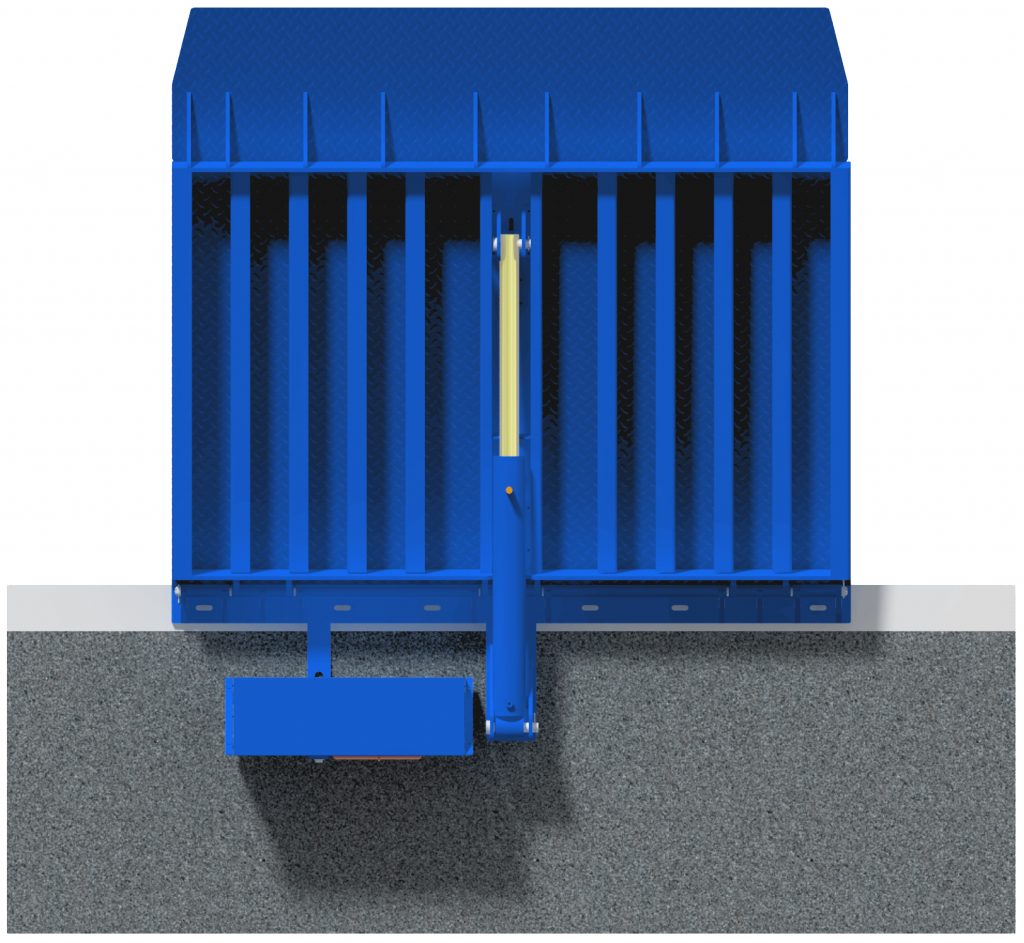

BOTTOM SUPPORTIVE BEAMS

  • U shaped strong beams
  • Healthy welding with inert-gas welding method.

BACK SIDE JOINT STRUCTURE

  • Strong fixation with welding

Mobile Loading Platform Colour Options

Mobile Loading Platform Colour Options

STANDARD: RAL 5010

OPTIONAL: All colors in the RAL  Catalog. (Except for phosphorous colors.)

Loading Capacity

  • 6 Ton – 10 Ton

DIMENSIONS

  • Production at required sizes

MOVABLE PLATFORM SOLUTION (Optional)

  • Please refer to sales team
