Let your door bring prestige to your building Enjoy “Automatic Sliding Door” comfort in every moment of life.

Vira – Automatic Sliding Doors

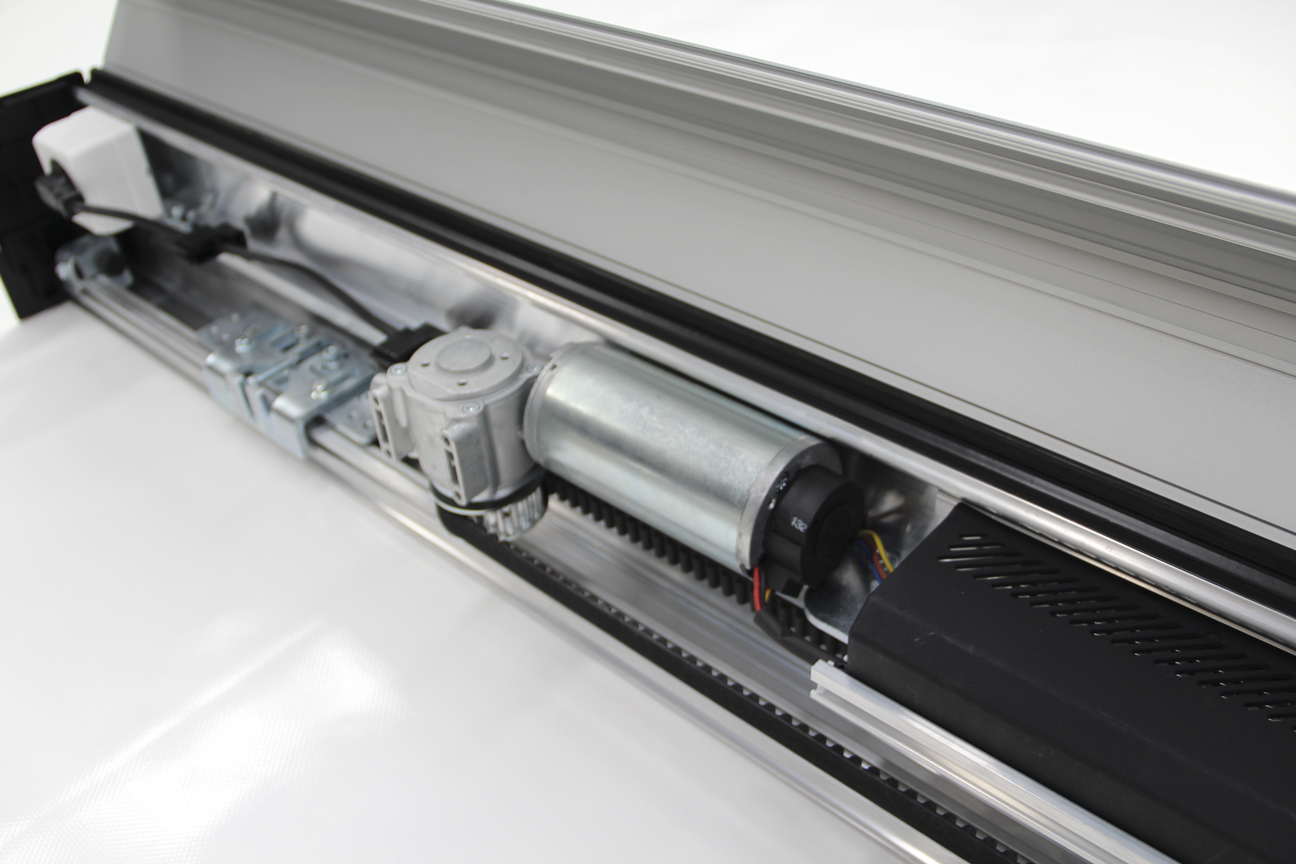

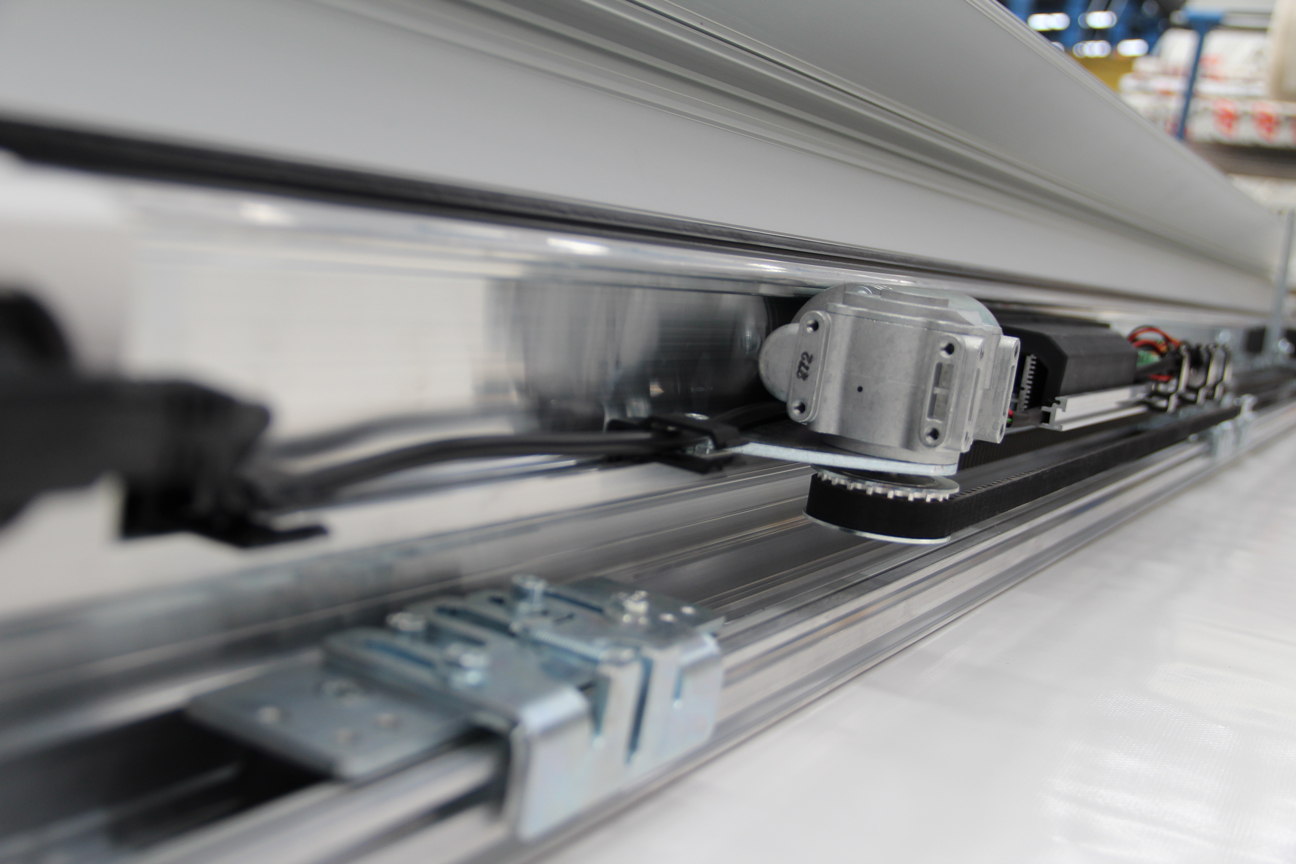

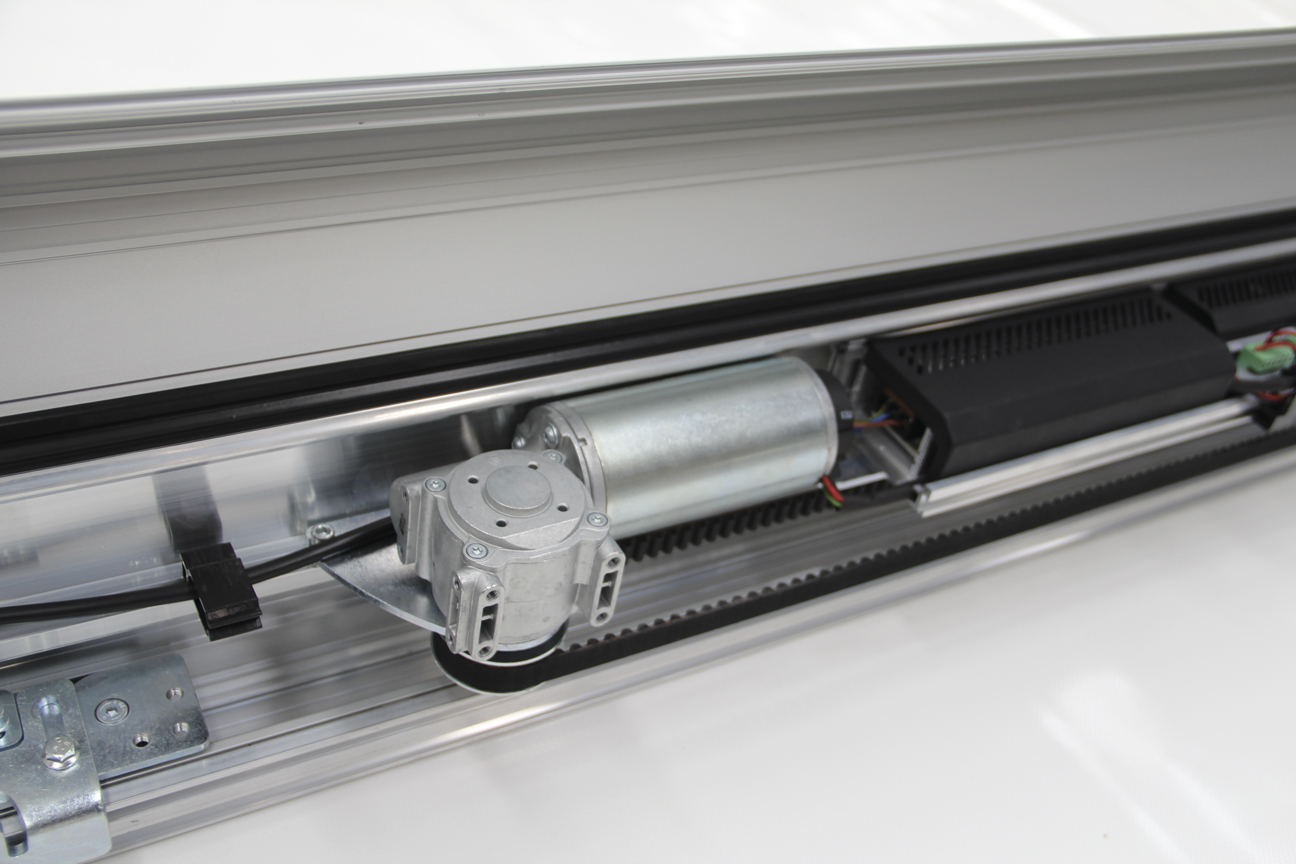

Motor Alternatives

  • German Dunker Motor
  • GOXU Motor

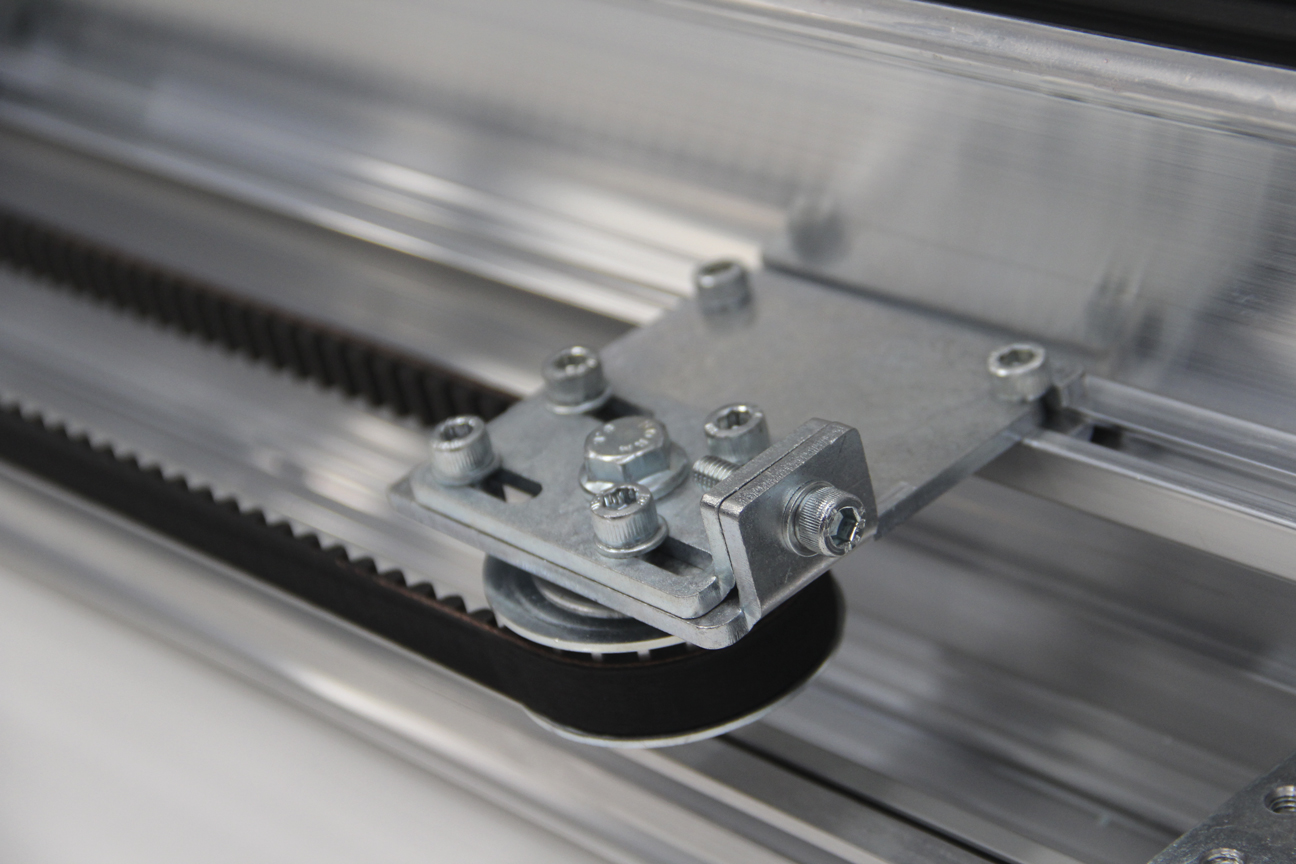

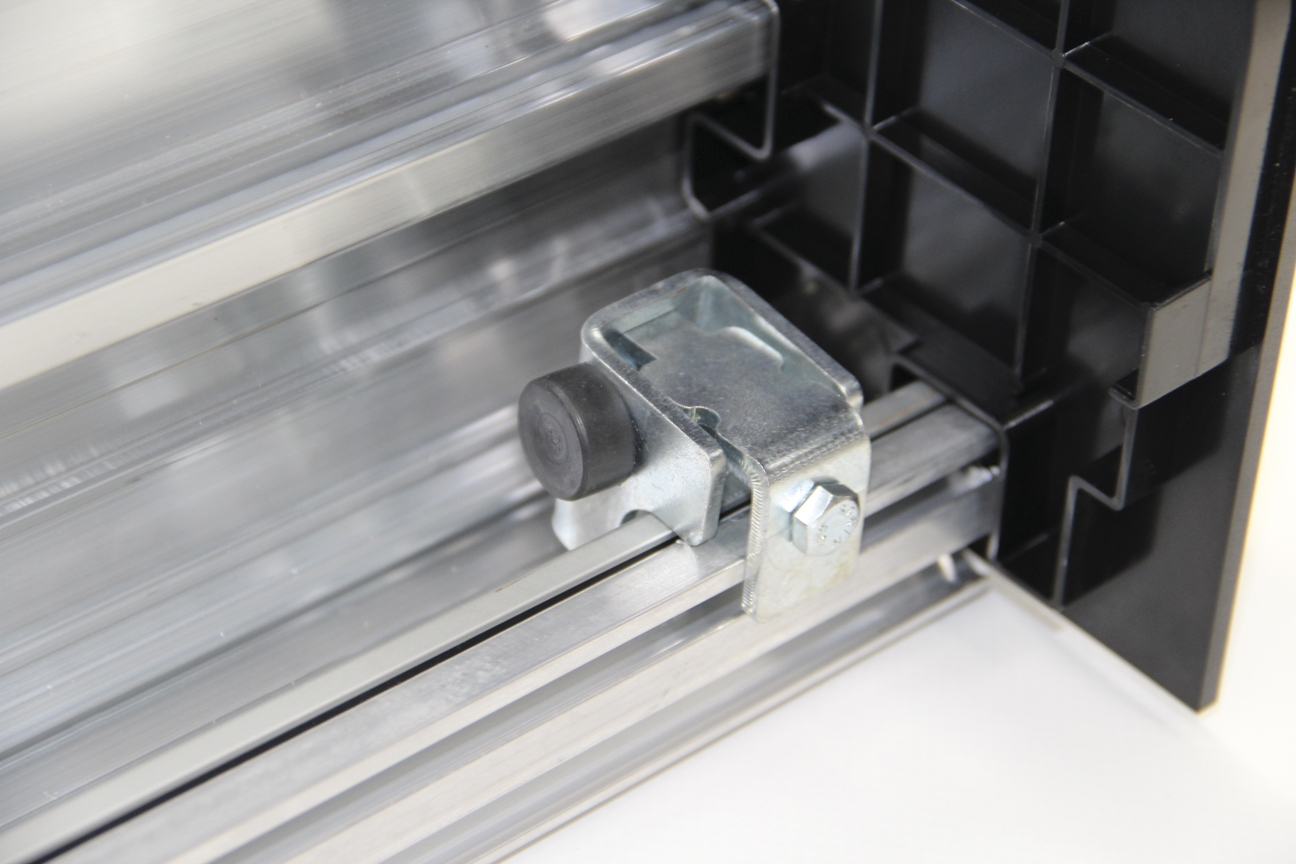

Carriage

  • Carriage with 3-wheels adjustable leaf height

Battery (Optional)

  • Battery system that ensures the operation of the door in case of black out

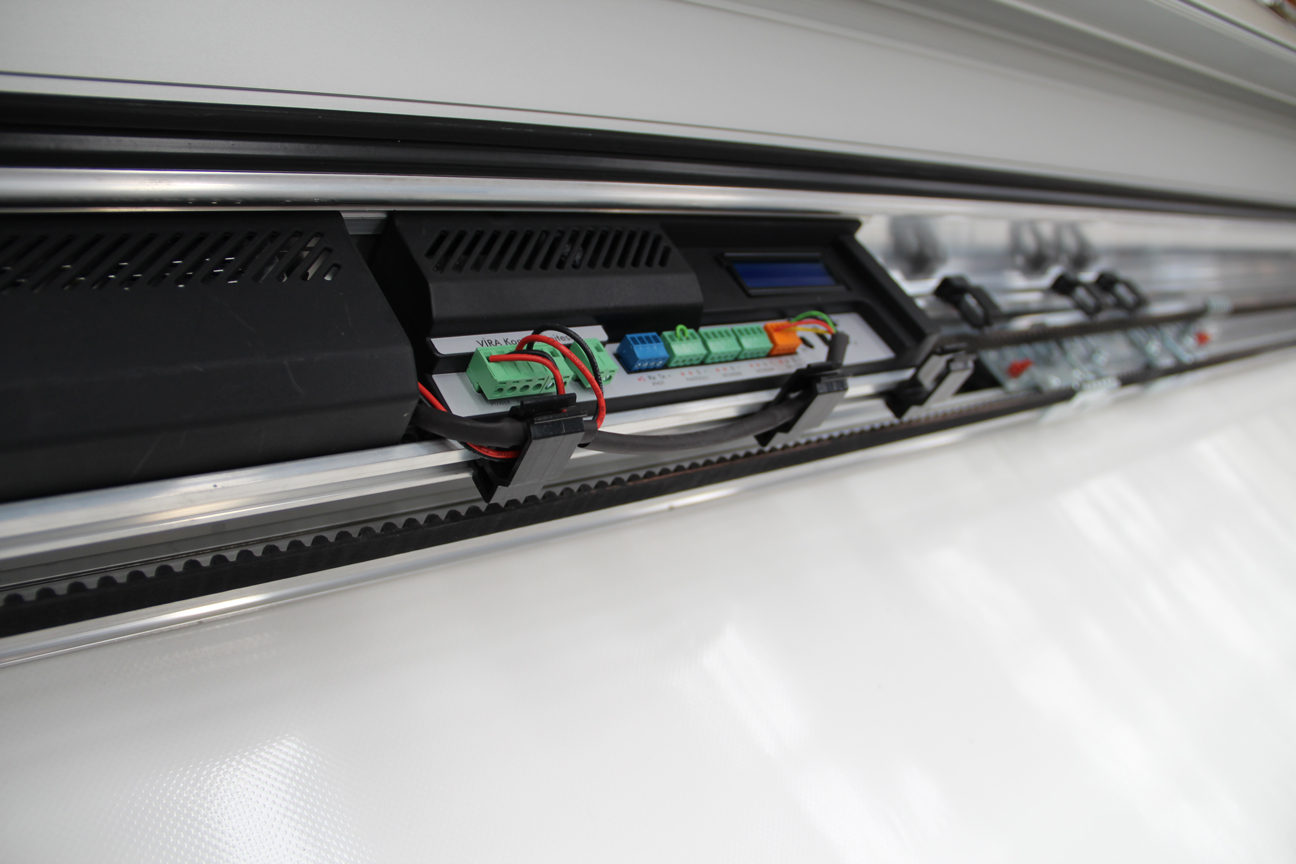

Control Unit

  • Control Unit with embeded LCD Monitor, programable with or without function selector

Electro-mechanical Lock (Optional)

  • Motorized lock that prevents the leaves to be opened by force

Rubber Damping Profile

  • Prevents noise and vibration

External Programmer (Optional)

  • Programs Parameters and Operation Modes
  • LCD Monitor with back light
  • Buzzer

Wireless Operation Mode Controller (Optional)

  • Select operation mode with one click
  • Easy to use
  • Uses wireless RF

Rubber Casing Profile

  • Connects Track Support and Casing Profiles together
  • Prevents noise, vibration and dust

Cover Holding Bar

  • Provides easy maintenance

Performance, elegance and quality all together

PROFILES FOR THE MECHANISM

Profiles of Mechanism for Automatic Sliding Doors

TECHNICAL SPECIFICATIONS

T40 T30
Operating Voltage 165 Vac -240 Vac  50 Hz 165 Vac -240 Vac  50 Hz
Power Consumption 250 W 1,5 A 250 W 1,5 A
Power Supply SMPS 150W 27 Vdc SMPS 150W 27 Vdc
Motor Brand DUNKER LOCAL
Applied Voltage 24 Vdc 24 Vdc
Torque 100 W 100 W
Dimensions of the Mechanism 72 x 160 x 110 mm 72 x 160 x 110 mm
Opening Speed 1 Leaf :90 cm/sec    2 Leaves :180 cm/sec 1 Leaf :90 cm/sec    2 Leaves :180 cm/sec
Closing Speed 70% of opening speed 70% of opening speed
Maximum Door Weight 1 Leaf: 130 kg 2 Leaves: 100 kg 1 Leaf: 130 kg 2 Leaves: 100 kg
Height Adjustment ±8 mm ±8 mm
Run Time Ratio 100% 100%
Impact Detection Encoder detection with microprocessor Encoder detection with microprocessor
Remote Control OPTIONAL OPTIONAL
Protection Class IP X0 IP X0
Limit Switch Control Encoder Encoder
Operating Temperature -15 °C / 55 °C -15 °C / 55 °C
Communication Protocol Rs485 Rs485

KIT CONTENT FOR ONE-LEAF

Kit Content For One-Leaf;

  • 1 pc. Dunker Brand Motor
  • 1 pc. Control Unit with LCD Monitor, in plastic cover
  • 1 pc. Switch-Mode Power Supply (SMPS) in plastic cover
  • 1 set side cap
  • 2 pcs. Roller carriages
  • Antistatic carbon brush
  • Reverse pulley
  • 1 set locking strap for electro-mechanical lock connection.
  • Cover Holding Bar
  • Power cable
  • Power Socket
  • Extension cable
  • GOXU Blob Tag
  • Installation Manual
  • Cardboard Box and fasterners, plastic cable channels
  • Belt Clamp

Design your own door with wide number of options

APPLICATION ALTERNATIVES

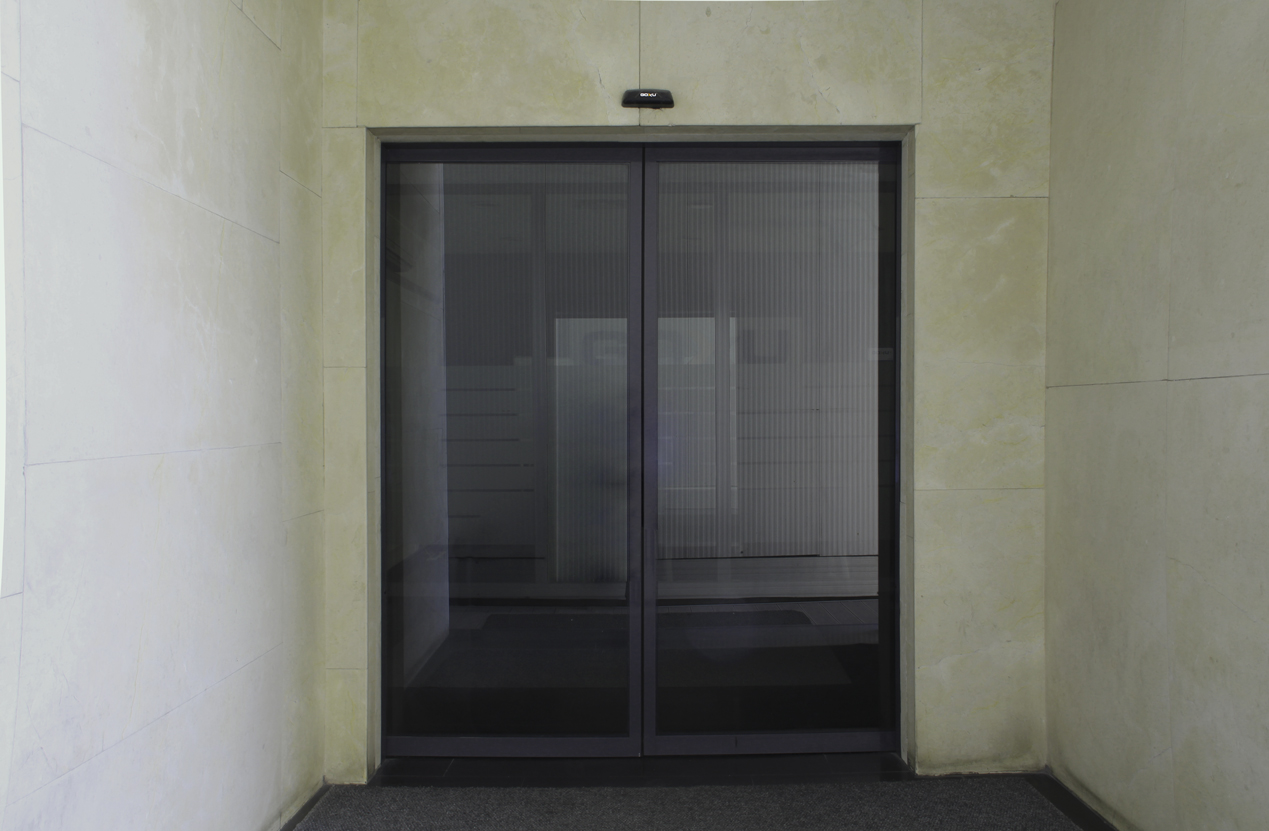

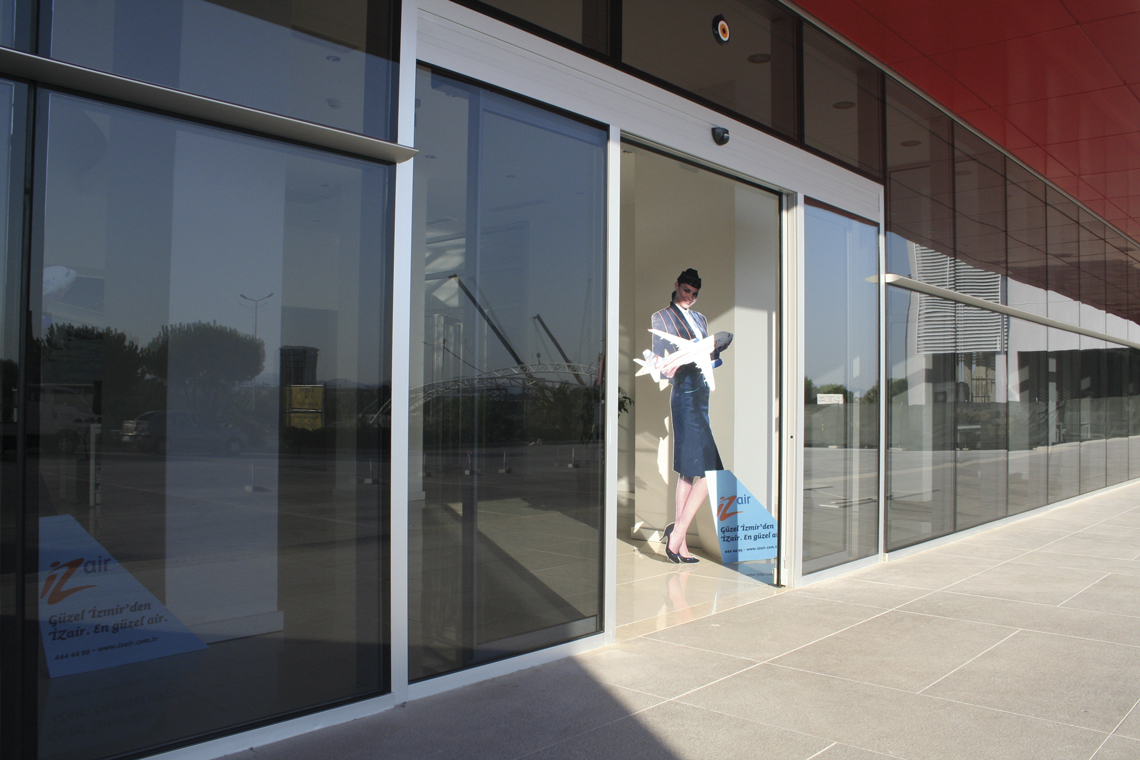

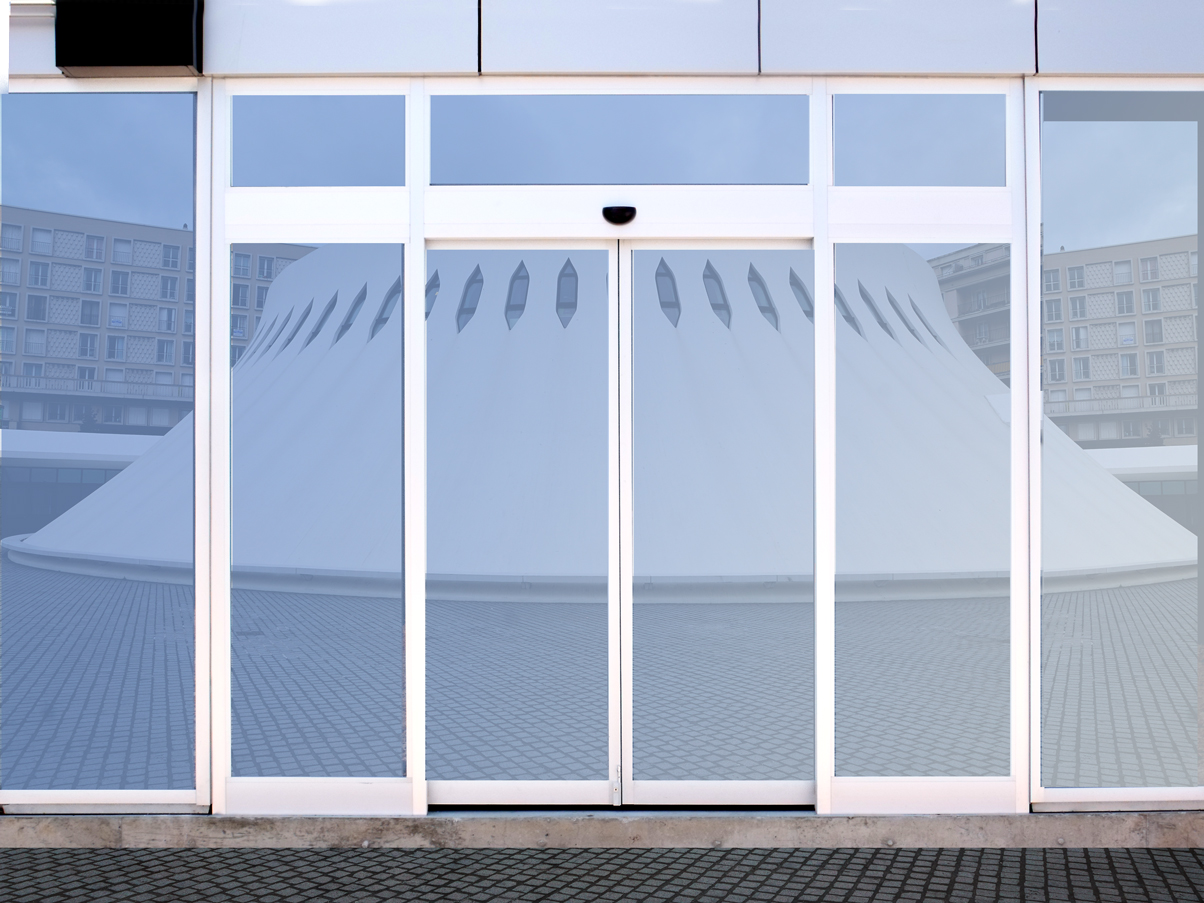

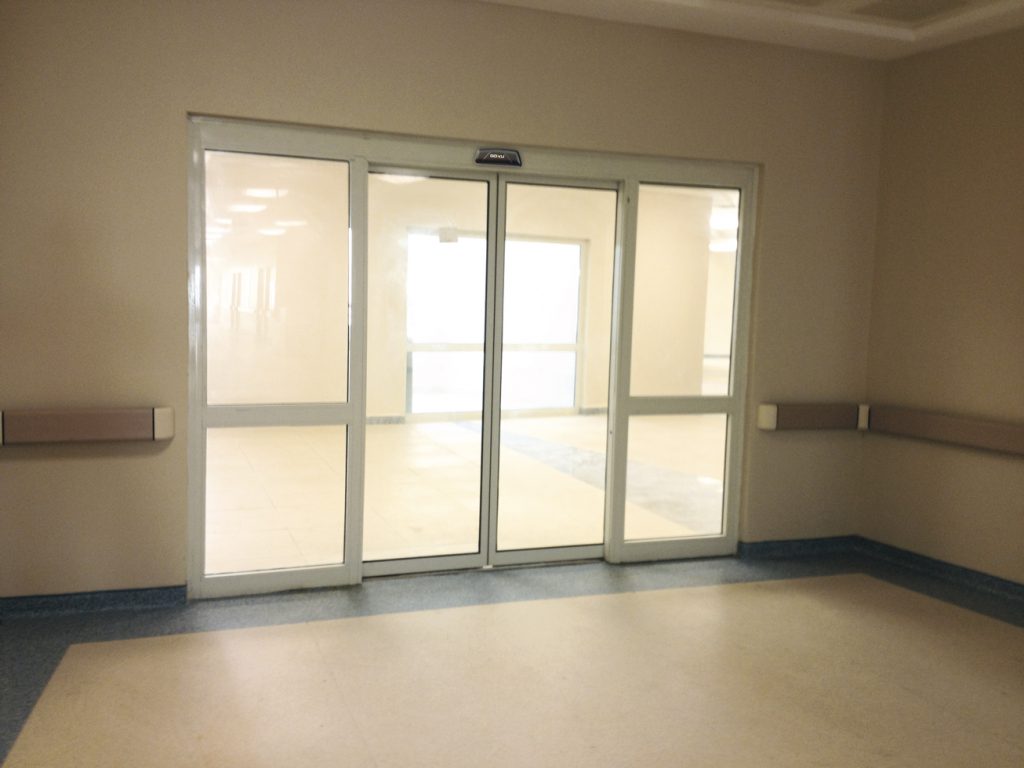

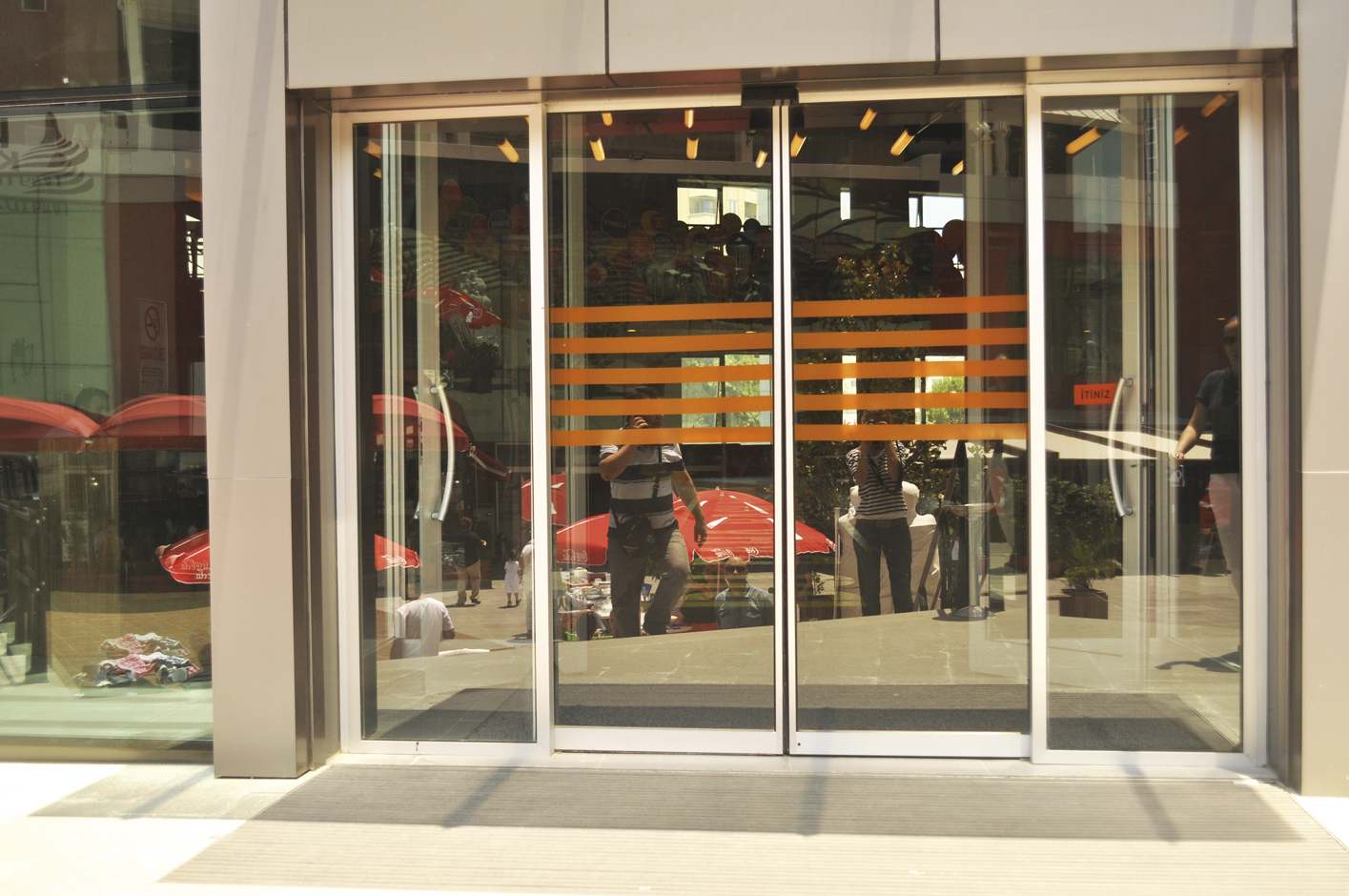

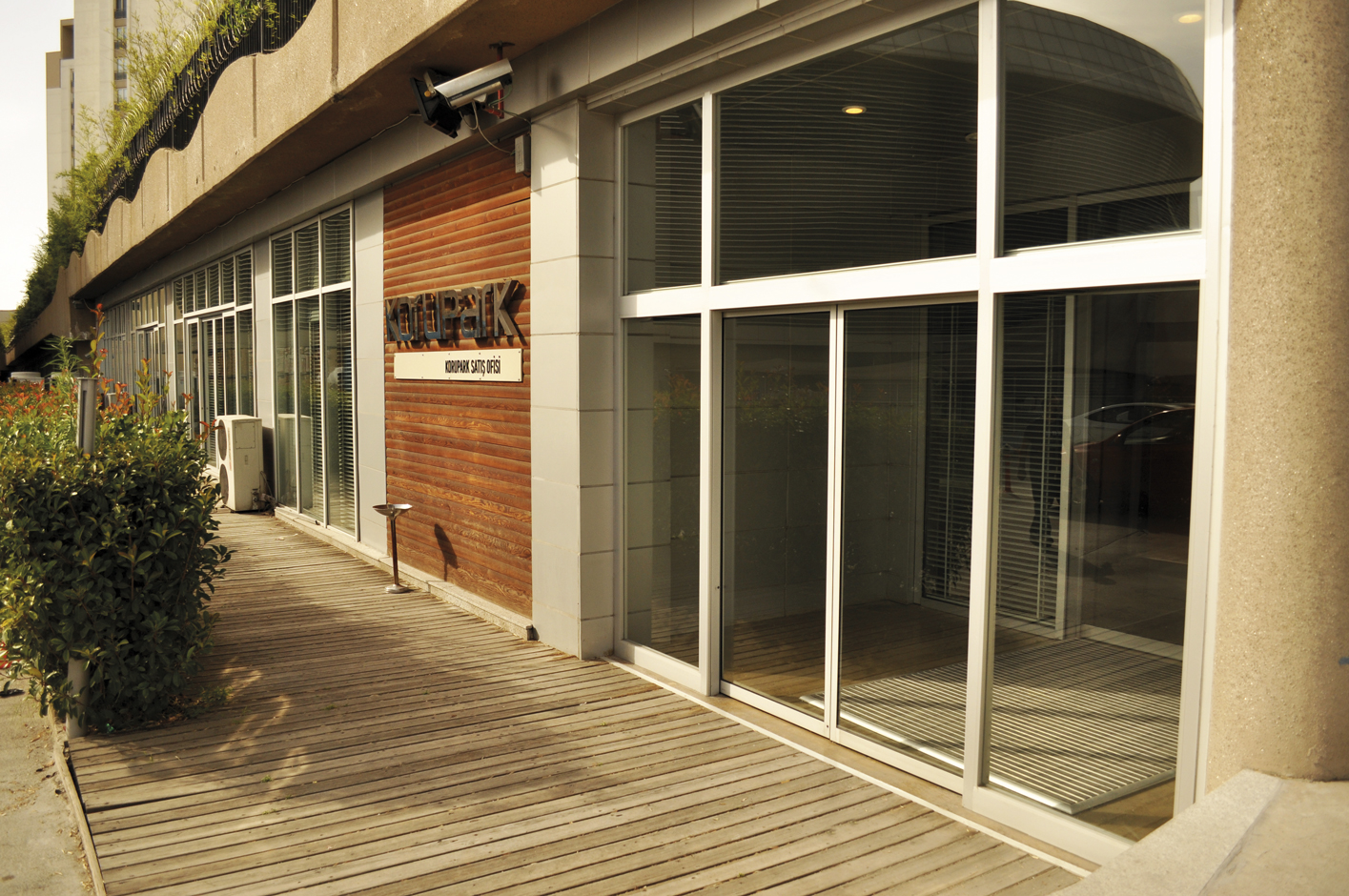

Automatic Sliding Doors

Two Leaf

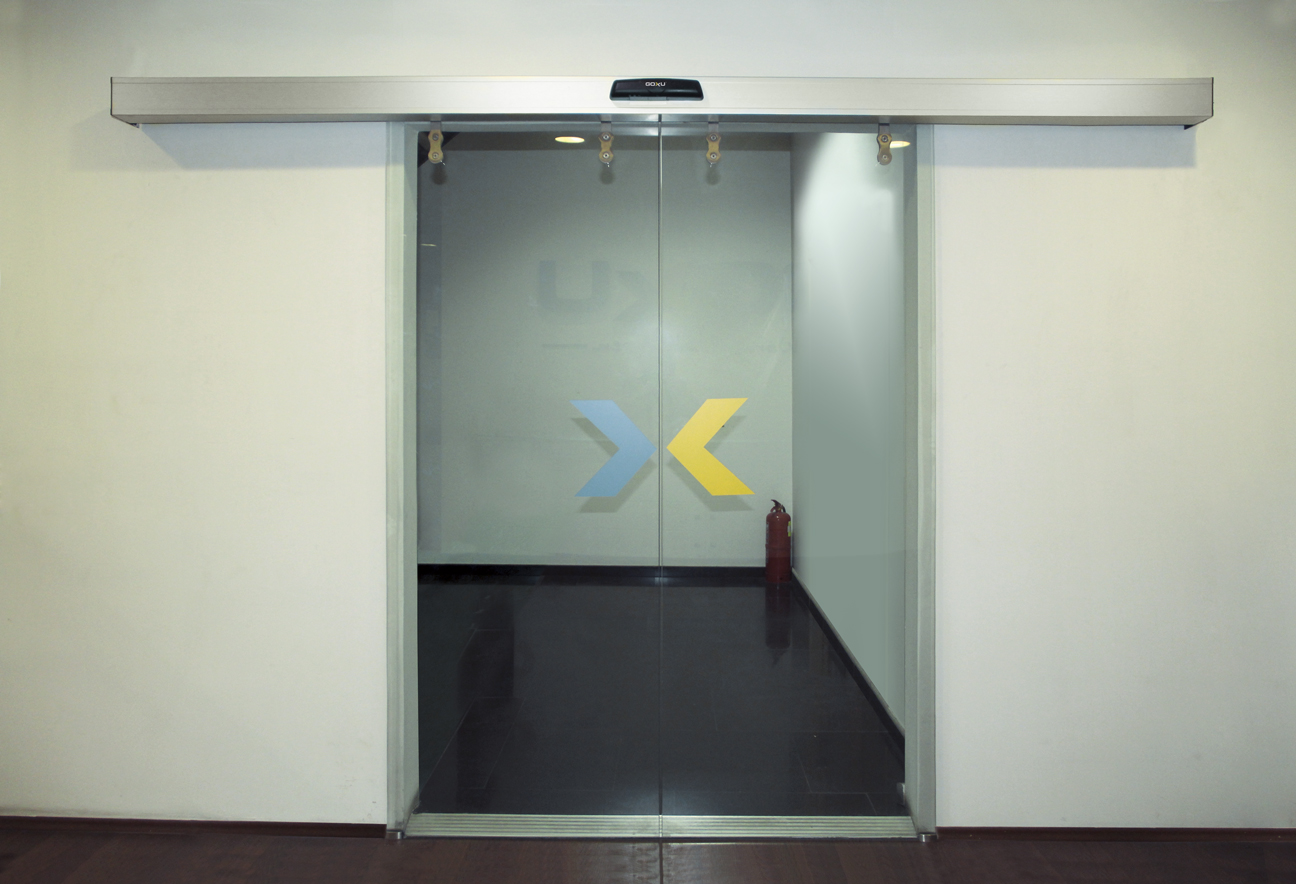

Automatic Sliding Doors

One Leaf

Time and energy saving


LEAF ALTERNATIVES

ViewLine - Sliding Door

ViewLine

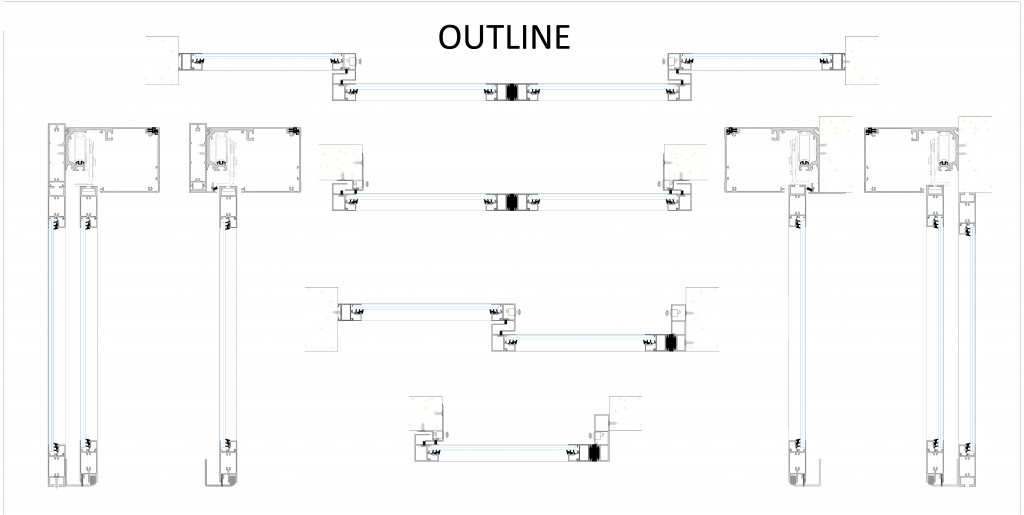

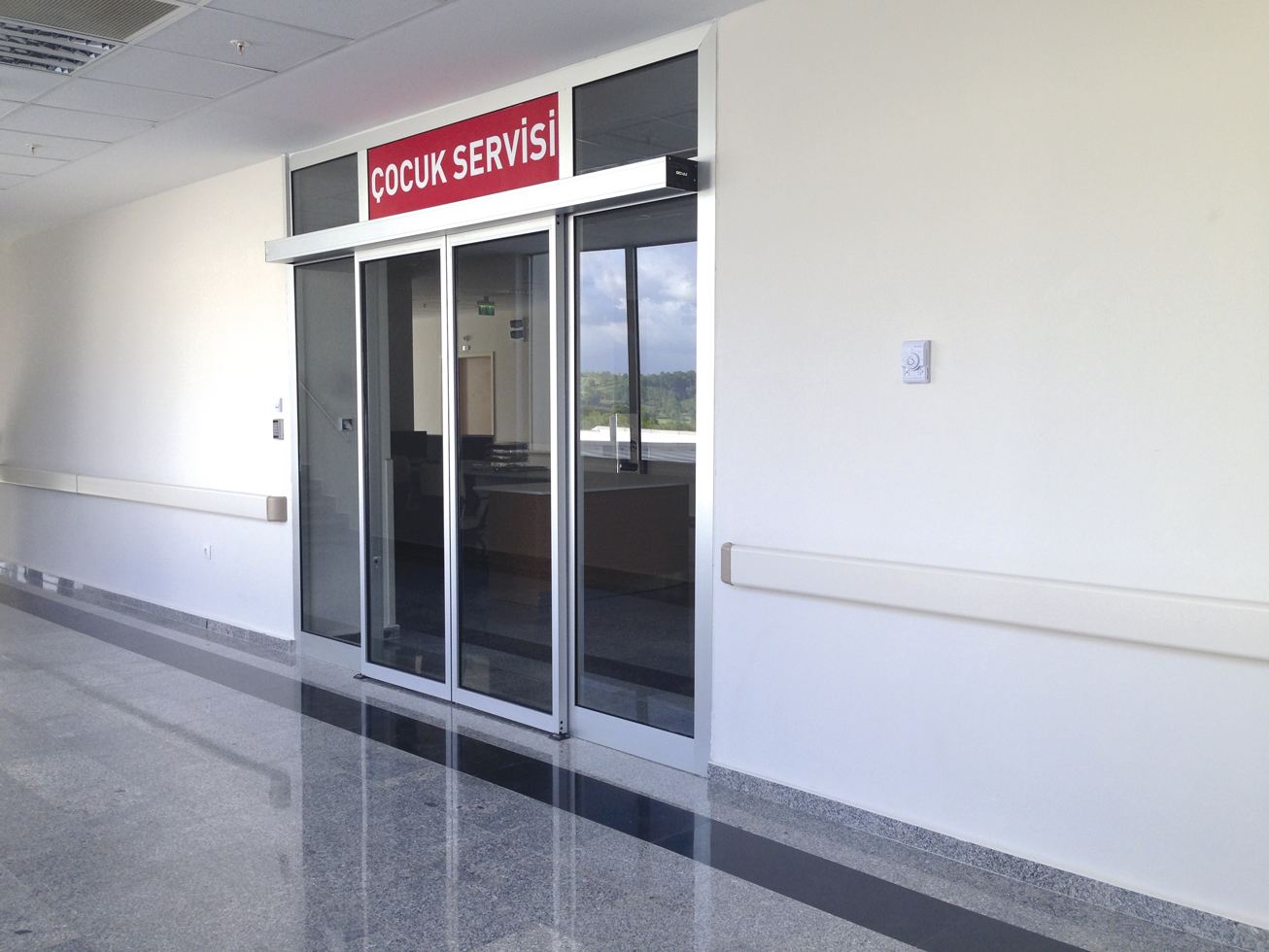

Outline - Sliding Door

OutLine

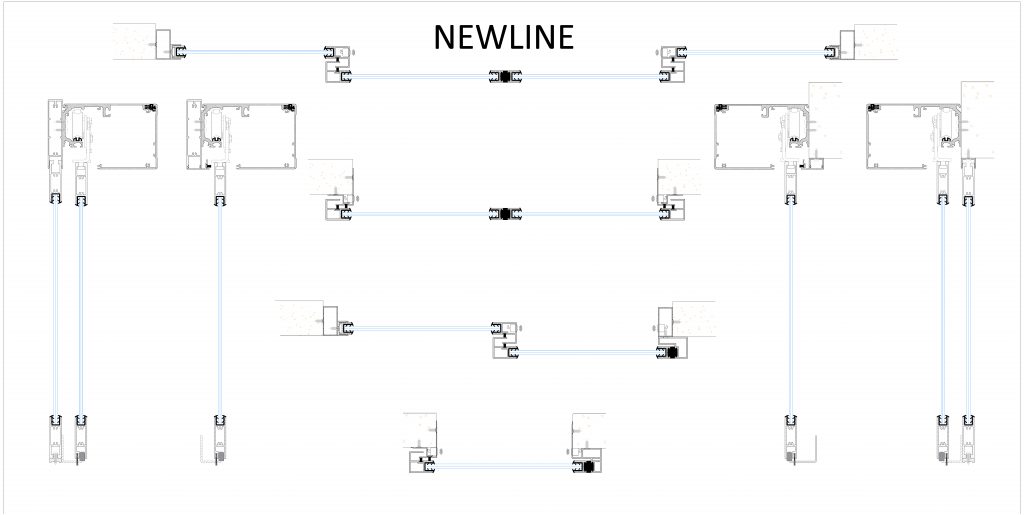

NewLine - Sliding Door

NewLine

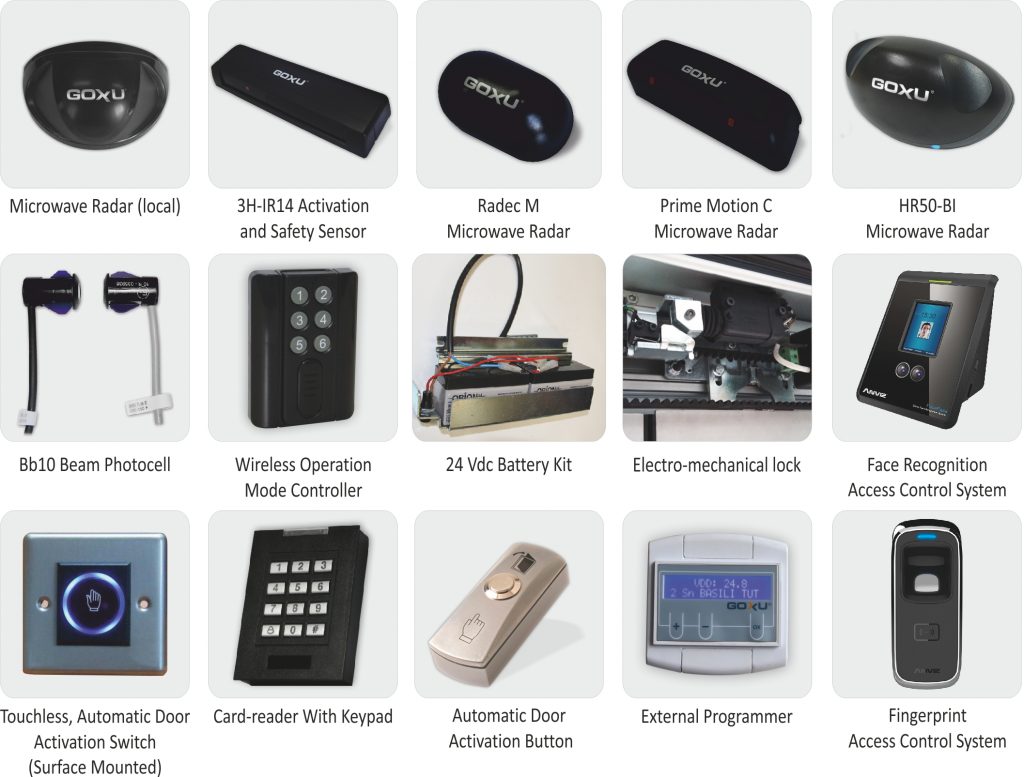

ACCESSORIES

Accessories for Vira - Sliding Door
