Mingardi Window Automation

Linear actuator

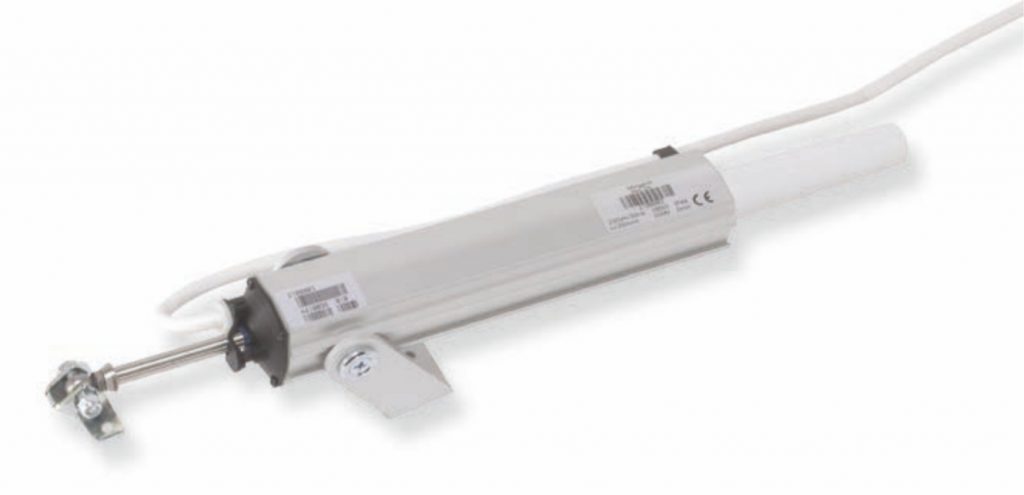

Mingardi Window Automation D4 fceLinea D4 Fce:

Thrust 200 N / 20 kg, Stroke 105 mm – 300 mm, Voltage 230 v

Rod actuator for: louvre windows, top hinged windows, domes.

  • Reduced dimensions
  • Fixing bracket sliding along the whole body
  • Maintenance free

Protection degree electrical devices: IP 44
Limit switch closing-opening: Microswitch
Colour: Anodised Silver (A)
Operating temperature: -10°C +40C°

DESCRIPTION OF SPECIFICATIONS

MINGARDI linear actuator with rigid rod movement, highly resistant to peak loads. 230V~ 50 Hz power supply.
It complies with 2006/95 LVD – 2004/108 EMC directives.
It is equipped with limit switches and relays for the parallel connection. Incorporated thermal overload protection.
Available colours: anodised silver. Complete with fixing accessories.

Applications

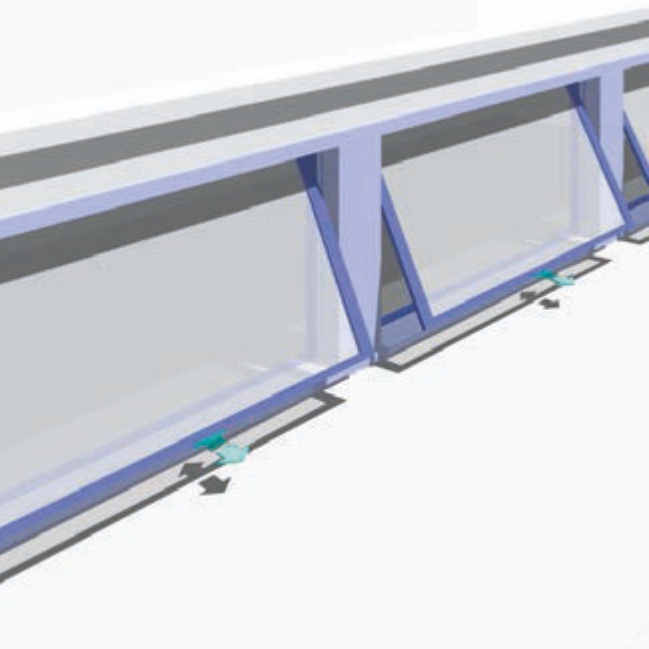

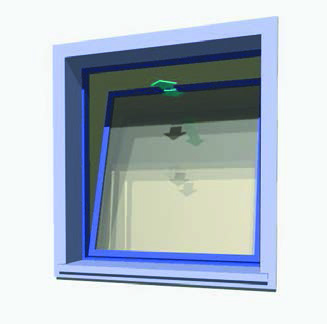

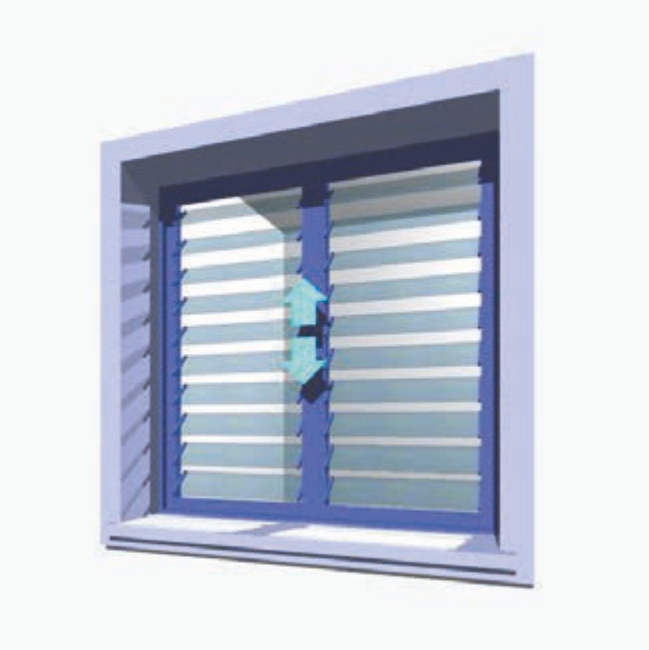

Mingardi Window Automation                 Mingardi Window Automation                  Mingardi Window Automation

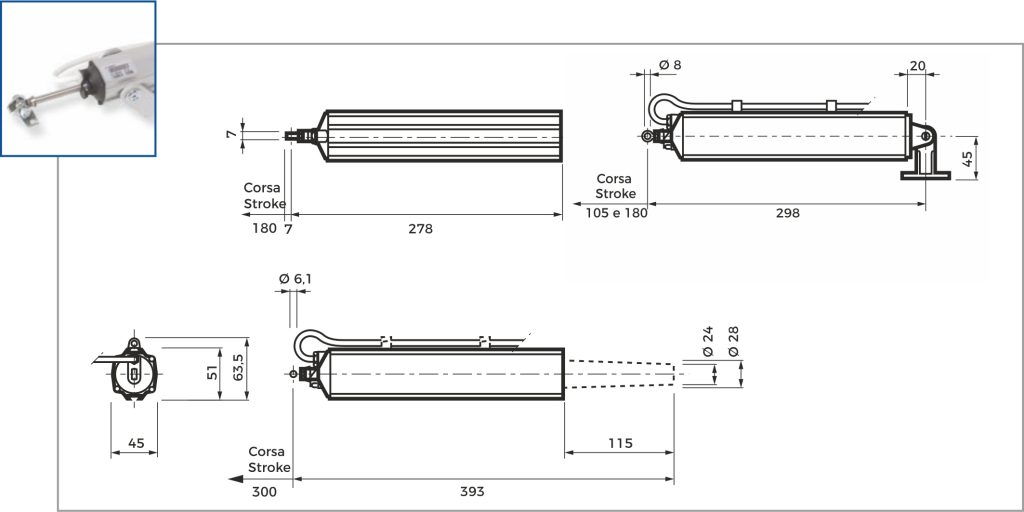

D4 Fce Scale drawing

Mingardi Window Automation

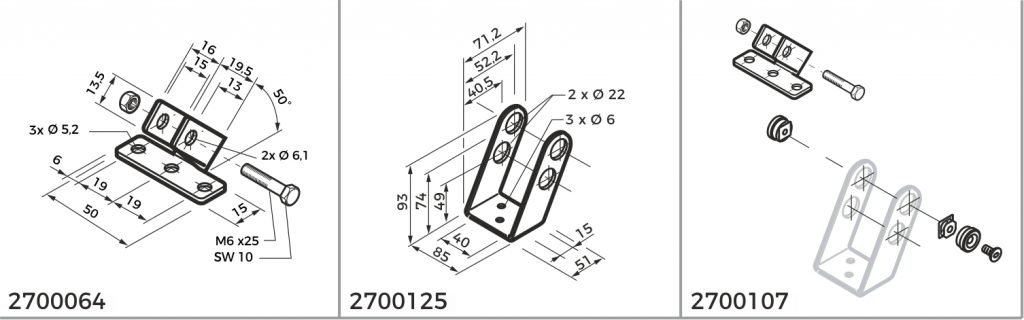

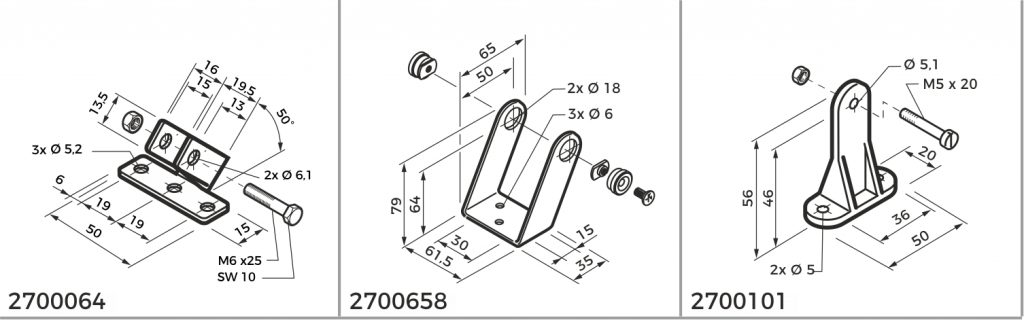

Accessories – Spare parts

Mingardi Window Automation Accessories

Mingardi Window Automation D8FceLinea D8 Fce:

Thrust 500 N / 50 kg, Stroke 160mm – 400 mm, Voltage 230 v

Rod actuator for: top hinged windows, domes, sunshades, louvre windows

  • Fixing bracket sliding along the whole body
  • High protection degree
  • Maintenance free

DESCRIPTION OF SPECIFICATIONS

MINGARDI linear actuator with rigid rod movement and high resistance to maximum loads. Operation 230V~ 50 Hz power supply.
It complies with 2006/95 LVD – 2004/108 EMC directives.
Fitted with limit switches and relays for connection in parallel. Incorporated thermal overload protection.
Available colours: anodised silver. Complete with fixing accessories.

Applications

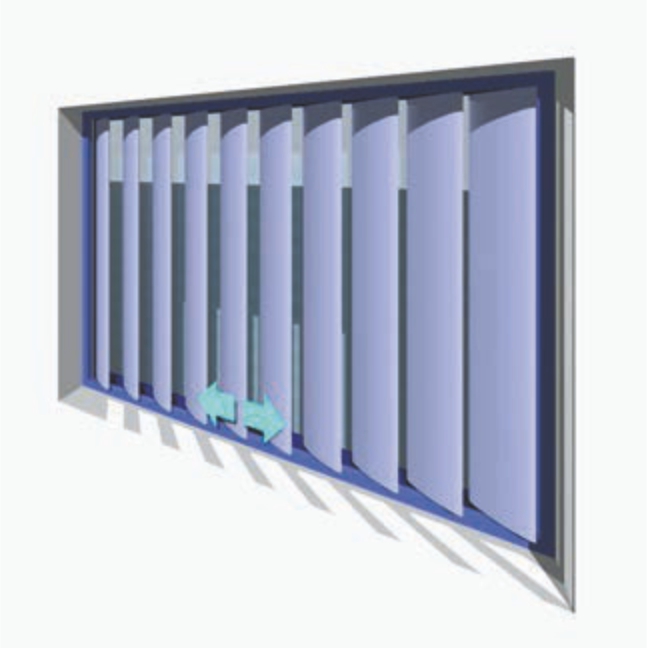

Mingardi Window Automation     Mingardi Window Automation       Mingardi Window Automation       Mingardi Window Automation

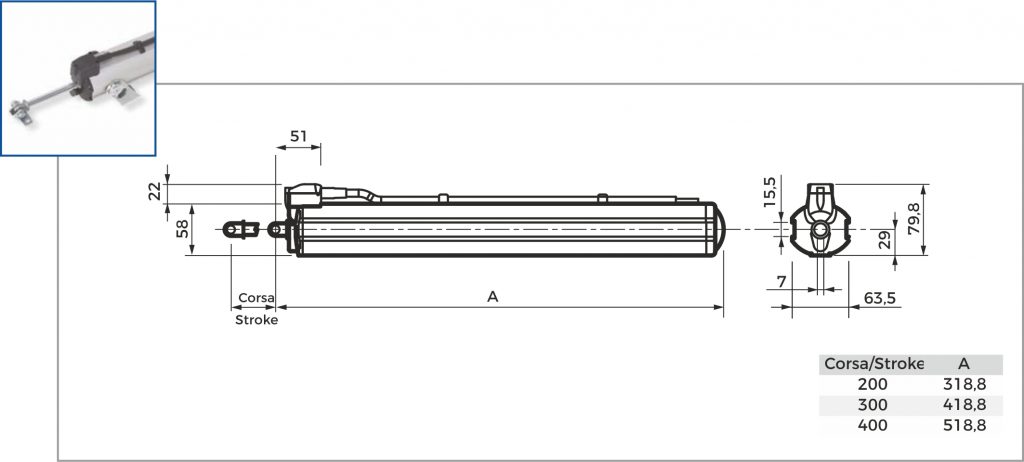

D8 Fce Scale drawing

Mingardi Window Automation

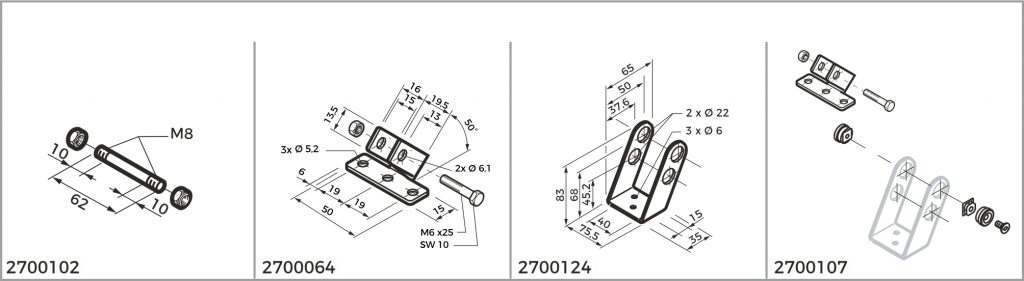

Accessories – Spare parts

Mingardi Window Automation

Mingardi Window AutomationLinea D16 Fce:

Thrust 1000 N / 100 kg, Stroke 300mm – 500 mm, Voltage 230 v

Rod actuator for: top hinged windows, domes.

  • High power
  • Fixing bracket sliding along the whole body
  • High protection degree
  • Maintenance free

DESCRIPTION OF SPECIFICATIONS

MINGARDI linear actuator with rigid rod movement, highly resistant to peak loads. Operation 230V~ 50 Hz power supply.
It complies with 2006/95 LVD – 2004/108 EMC directives.
It is equipped with limit switches and relays for the parallel connection. Incorporated thermal overload protection.
Available colours: anodised silver. Complete with fixing accessories.

Applications

Applications      Mingardi Window Automation       Mingardi Window Automation

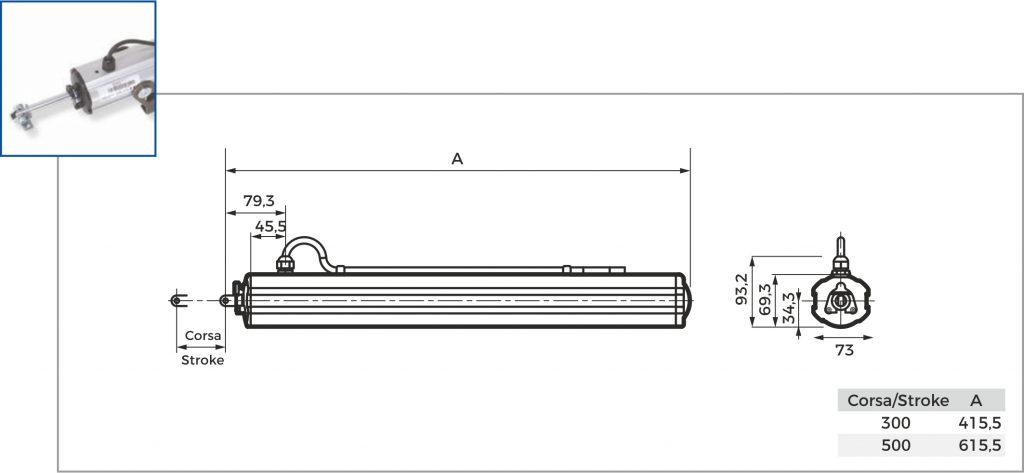

D16 Fce Scale drawing

Mingardi Window Automation

Accessories – Spare parts

Mingardi Window Automation

Mingardi Window AutomationLinea D31 Fce:

Thrust 2000 N / 200 kg, Stroke 180mm – 500 mm, Voltage 230 v

Rod actuator for: top hinged windows, domes.

  • Maximum power
  • Wide range of strokes
  • Maintenance free

DESCRIPTION OF SPECIFICATIONS

MINGARDI linear actuator with rigid rod movement, highly resistant to peak loads. Operation 230V~ 50 Hz power supply.
It complies with 2006/95 LVD – 2004/108 EMC directives.
It is equipped with limit switches and relays for the parallel connection. Incorporated thermal overload protection.
Available colours: anodised silver. Complete with fixing accessories.

Applications

Applications      Mingardi Window Automation       Mingardi Window Automation

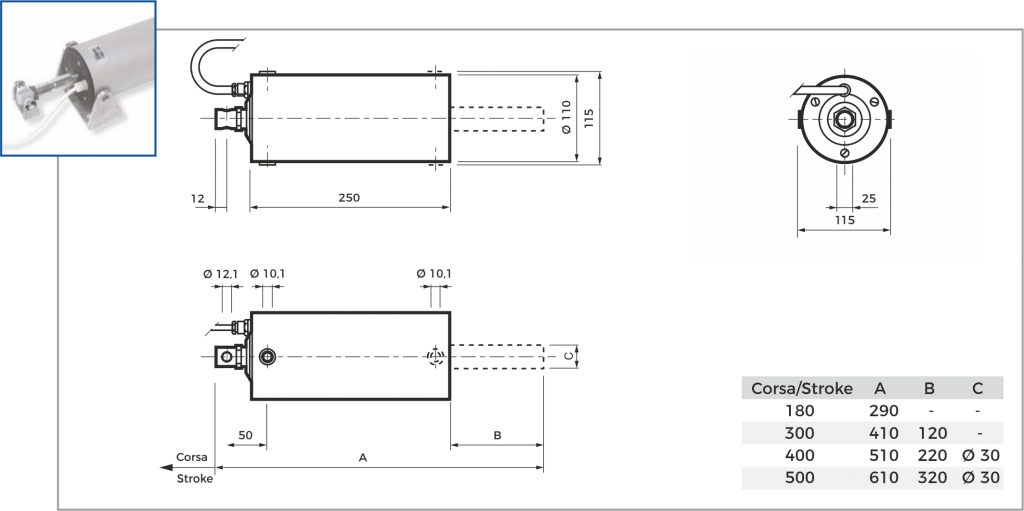

D31 Fce Scale drawing

Mingardi Window Automation

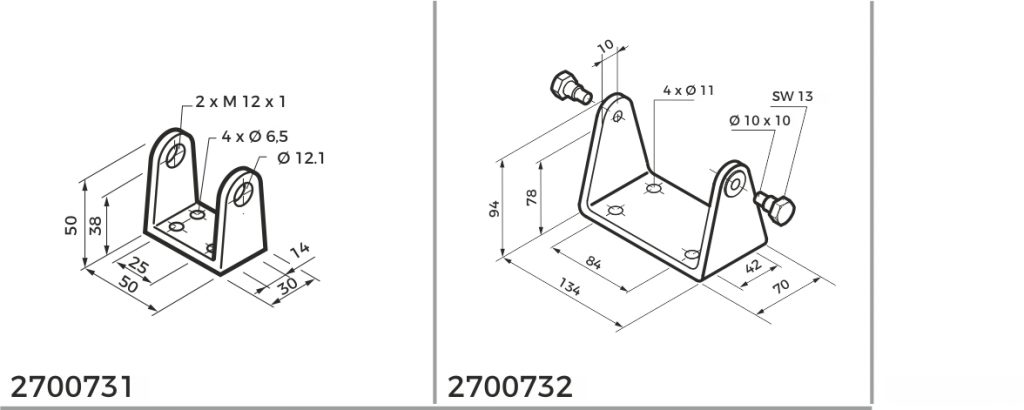

Accessories – Spare parts

Mingardi Window Automation

Mingardi Window Automation

Chain actuator

Mingardi Window AutomationMicro S:

 Thrust 200 N / 20 kg, Stroke 200 mm – 250 mm, Voltage 230 v

Chain actuator for: top hinged windows, bottomhinged windows, roofwindows.

  • Very reduced dimensions
  • Double-link chain
  • Low consumption
  • Maintenance free

DESCRIPTION OF SPECIFICATIONS

DESCRIPTION OF SPECIFICATIONSMINGARDI linear electric actuator with reinforced double-sprocket chain inside the actuator body. Operating voltage: 230V~ 50 Hz inconformity with Directives 2006/95 LVD – 2004/108 EMC.Operating voltage: 24V DC in conformity with Directive 2004/108 EMC.Predisposed with electronic limit switch system for opening and closing absorption. Can be connected in parallel.Colours available: anodised silver (A) – anodised black (N) – RAL9003 (B).

Applications

Mingardi Window Automation     Mingardi Window Automation       Mingardi Window Automation

A compact chain actuator with minimum dimensions suitable for automatic opening windows (bottom and top hinged), roof lights/skylights.

  • Minimum overall dimensions
  • 230v or 24v dc power supply
  • Easy to install
  • Low power consumption
  • Noiseless
  • Protective limit switch (24v dc version)
  • Electric actuator with reinforced double-sprocket chain inside the actuator body
  • Fitted with electronic limit switch system, which can be connected in parallel
  • Complies with 73/23 LVD – 89/336 EMC directives, as modified by 93/68 CE

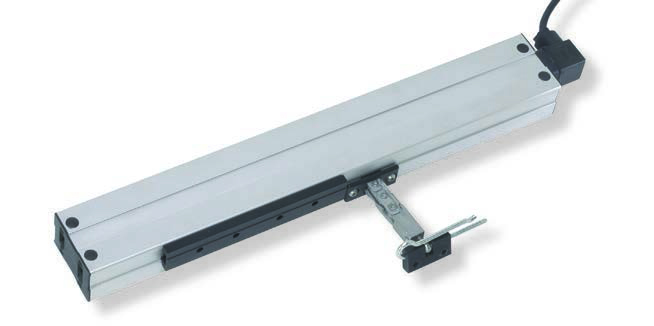

Mingardi Window AutomationMicro L:

 Thrust 350 N / 35 kg, Stroke 280 mm – 380 mm, Voltage 230 v

Chain actuator for: top hinged windows, bottomhinged windows.

  • High power
  • Double-link chain
  • Tested in accordance withthe requirements of theEuropean Standard EN12101 – 2
  • Silicon cable

Applications

Mingardi Window Automation     Mingardi Window Automation

A medium strength chain actuator with great reliability for natural ventilation (window automation) applications. Flexible fixing via the body or face mounting brackets.

  • Maintenance free
  • Extended stroke
  • Low consumption
  • Noiseless operation
  • Protective limit switch (24v dc version)
  • Electric actuator with reinforced double-sprocket chain inside the actuator body
  • Fitted with electronic limit switch system, which can be connected in parallel
  • Complies with 73/23 LVD – 89/336 EMC directives, as modified by 93/68 CE.

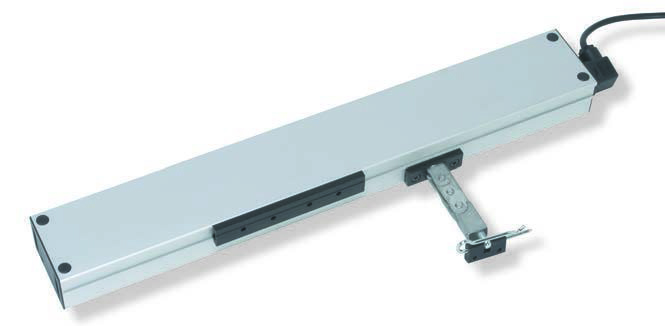

Mingardi Window AutomationMicro XL:

 Thrust 400 N / 40 kg, Stroke 420 mm – 835 mm, Voltage 230 v

Chain actuator for: Chain actuator for: top hinged windows, bottomhinged windows.

  • Maximum power
  • Strokes up to 835 mm
  • Tested in accordance withthe requirements of theEuropean Standard EN12101 – 2
  • Silicon cable

Applications

Mingardi Window Automation     Mingardi Window Automation

A powerful cost effective chain actuator with large opening strokes (up to 835mm). Multiple mounting / fixing options with this flexible double chain design.

  • The Micro XL are chain actuators with reinforced double sprocket chains
  • The XL is available in 24v DC or 230v AC format
  • Fitted with electric limit switch systems, which can be connected in parallel
  • Noiseless operation
  • Maintenance free
  • Extended Stroke
  • Attractive design
  • Complies with 73/23 LVD – 89/336 EMC directives, as modified by 93/68 CE.
